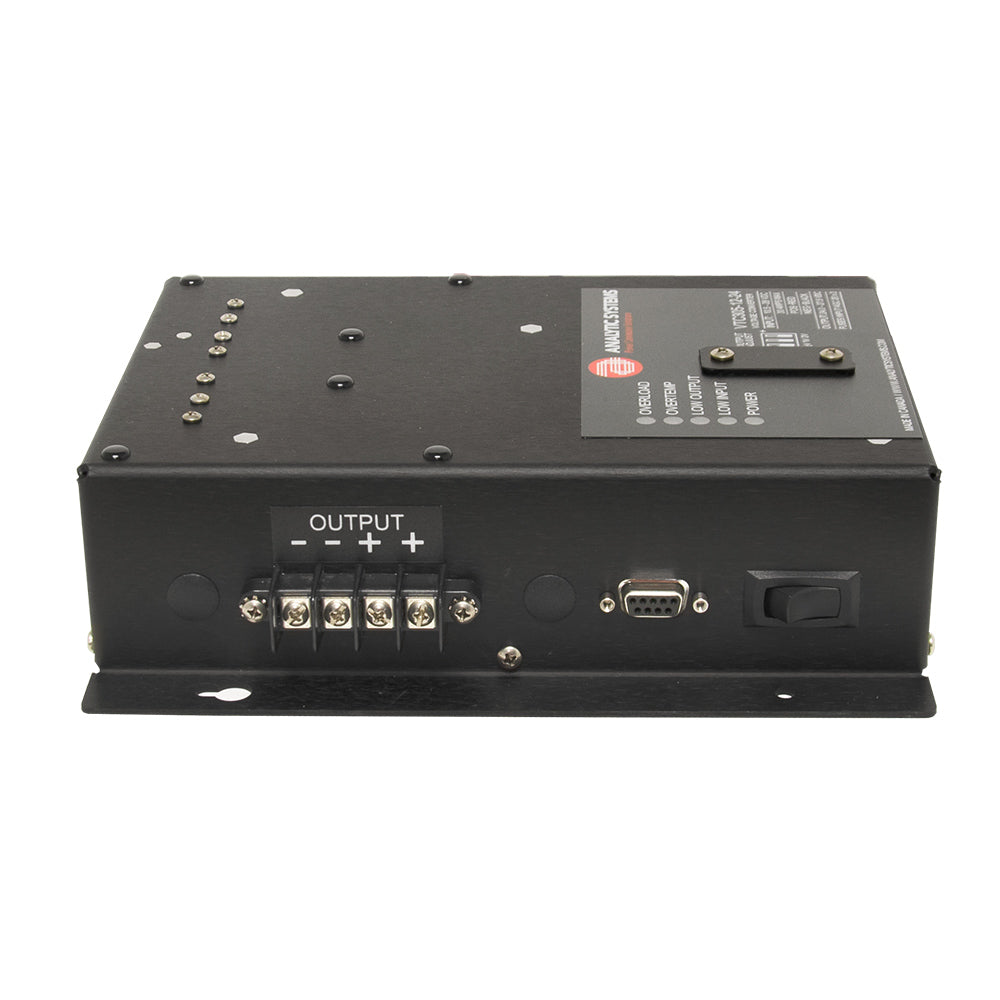

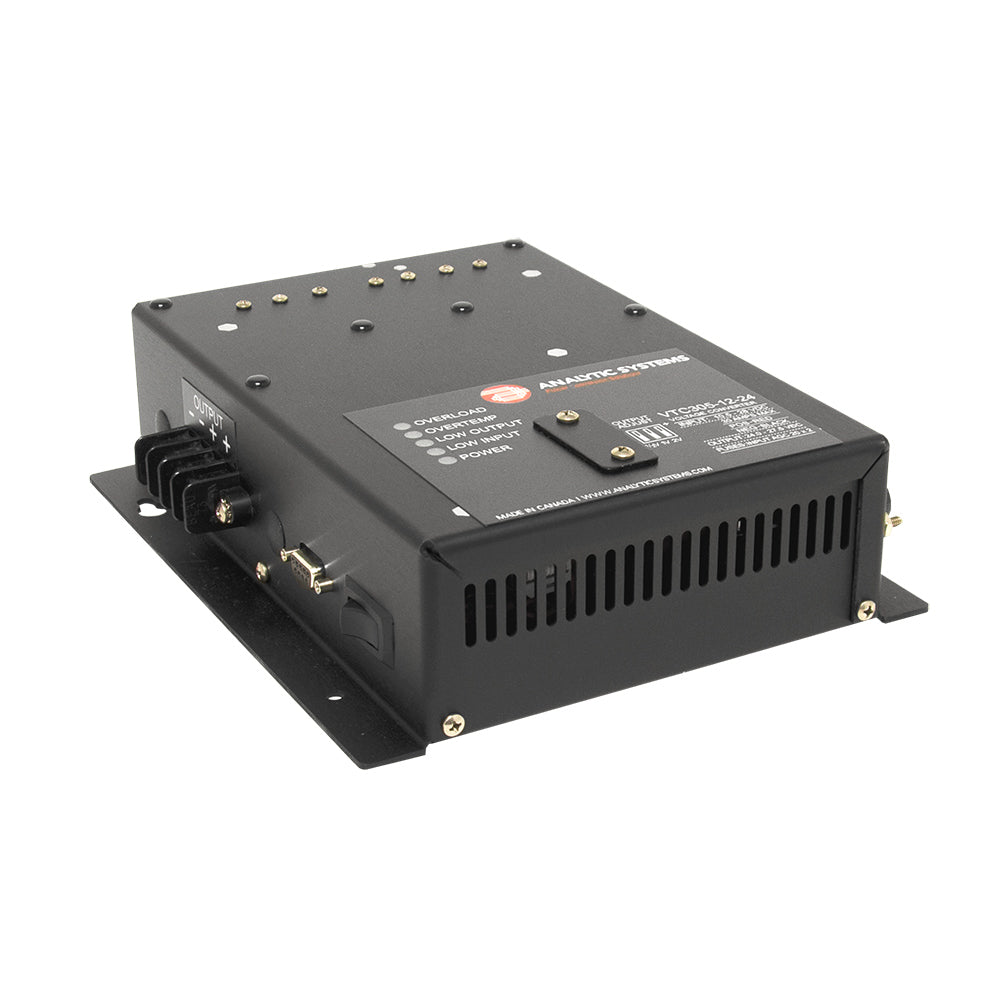

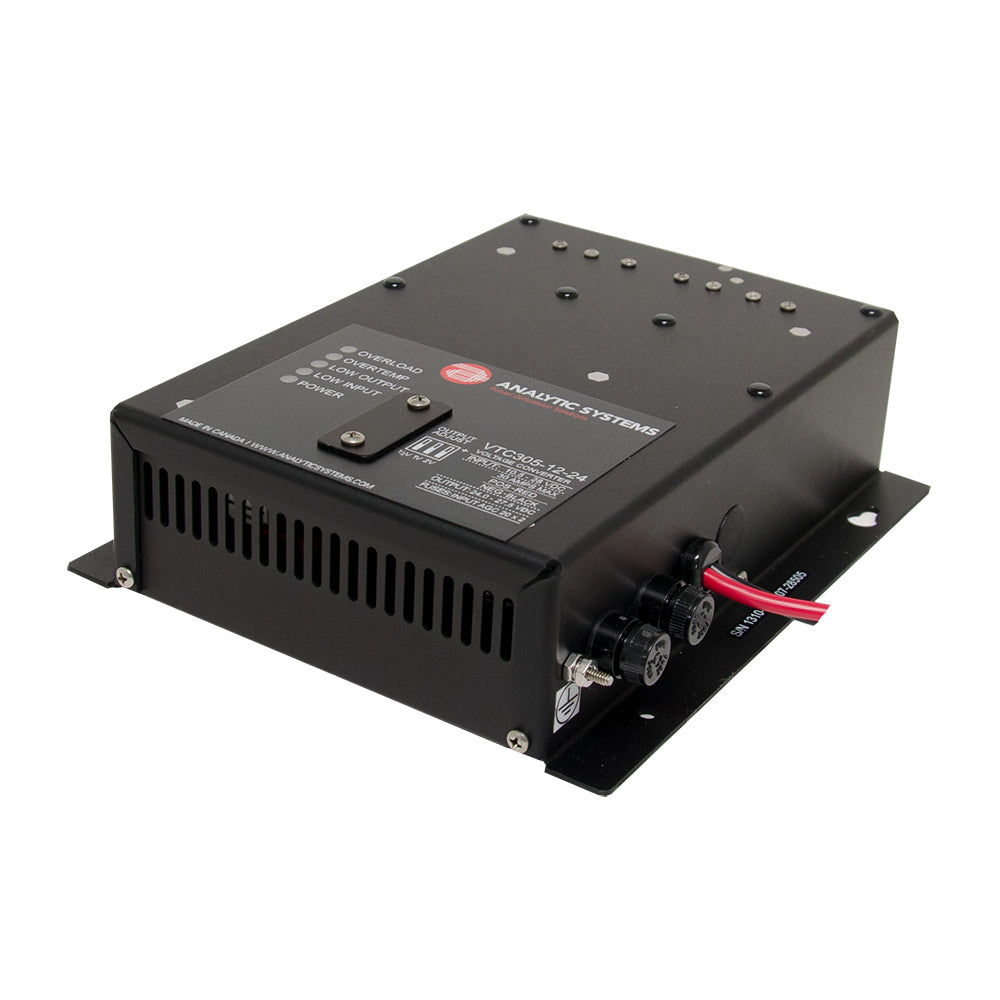

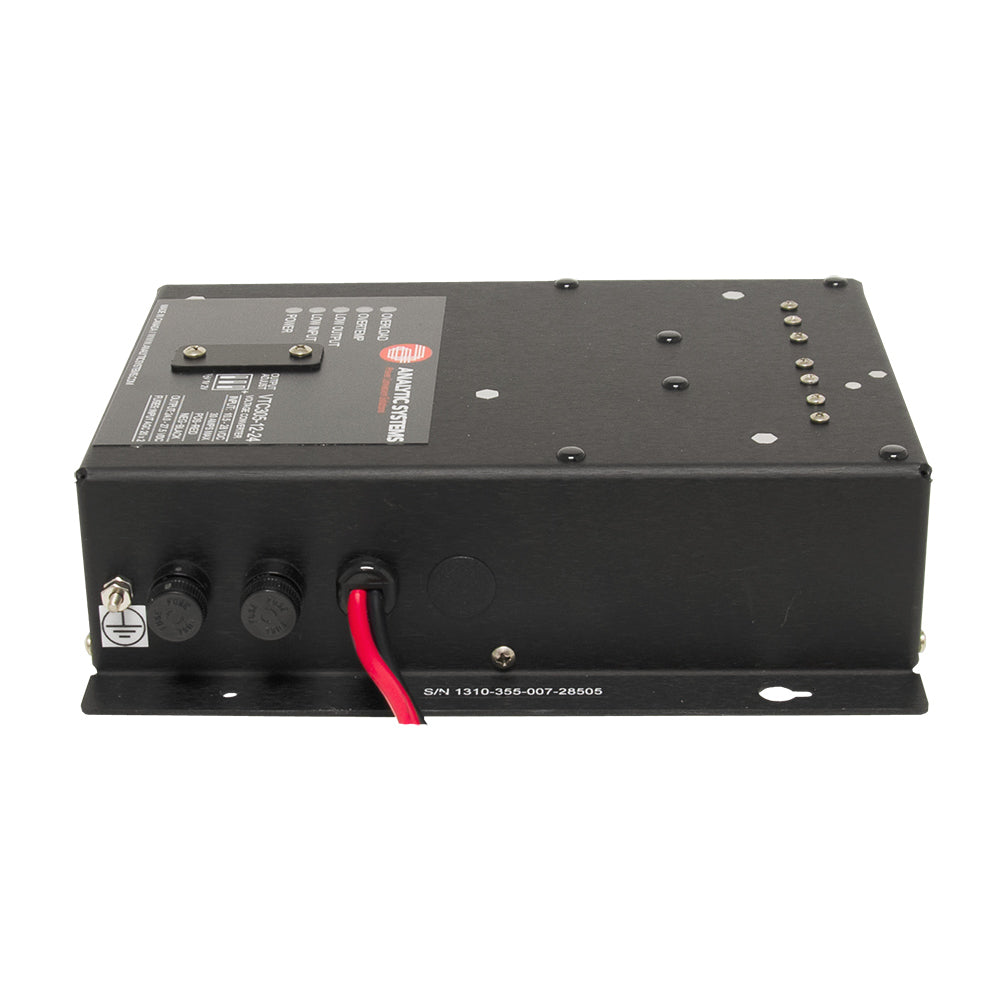

Analytic Systems Non Iso DC/DC Converter 13A, 24V Out, 11-15V In

Enhance your marine electrical system with our Non-Isolated DC/DC Converter, designed to efficiently step up your 12 VDC battery to a stable 24 VDC output. Whether you're looking to power brighter headlights, boost ignition systems, or stabilize your boat's power supply, this converter provides reliable performance with advanced safety features tailored for the demanding marine environment.

Key Features

• Ultra-quiet operation ensures a peaceful marine experience
• Rugged and reliable construction for years of safe and trouble-free operation
• Simple and intuitive operation with a 3-position DIP switch for easy voltage adjustment
• Current limiting protection to safeguard your electrical system
• Paralleling diodes for enhanced performance and reliability
• European ROHS Compliant – Lead-Free Manufactured
• Electric Fork Lift capability with filtering and surge suppression
• Open frame design for effective heat dissipation using heat sink bars
• Heavy-duty ruggedization with a wide temperature range suitable for marine conditions
• Custom input/output options available to meet specific requirements
• Three-year parts and labor warranty for added peace of mind

Advanced Safety Features

• Reverse input protection prevents damage from incorrect connections
• Low input voltage alarm alerts you when the battery voltage is insufficient
• Low output voltage alarm ensures your devices receive stable power
• Over-temperature shutdown and alarm protect the converter from overheating
• Output overvoltage crowbar safeguards connected equipment from voltage spikes

Specifications

Applications

Our DC/DC Converter is ideal for a wide range of marine applications, including:

• Brightening 12-volt headlights or work lights for improved visibility
• Increasing voltage to automotive or marine ignition systems for hotter sparks and preventing failures during engine start
• Stabilizing 12 and 24 VDC power systems in marine, automotive, or aeronautical environments
• Powering sensitive electronic equipment aboard your vessel with a stable and reliable power supply
• Enhancing the performance of various onboard electrical devices and systems

Optional Features

• Dry contact alarm relay output for customizable alert systems
• Remote panel monitoring with On/Off control for convenient management of the converter

Warranty and Compliance

Our DC/DC Converter comes with a generous three-year parts and labor warranty, ensuring long-term reliability and support. It is also subjected to Safety Special Inspection (CSA/UL) standards, guaranteeing compliance with the highest safety regulations for marine and industrial applications.
