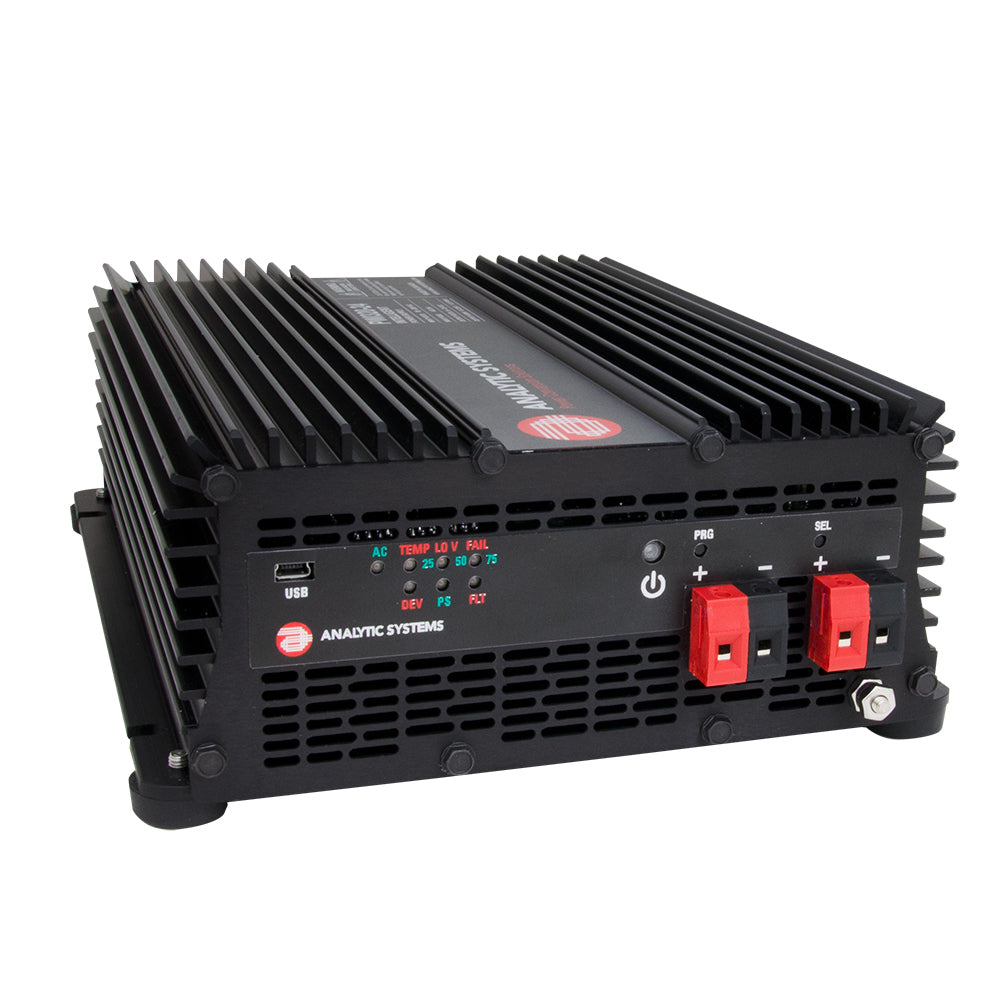

Analytic Systems AC Power Supply 20/25A, 12V Out, 85-265V In

The PWI320 Intelligent Power Supply is an essential component for marine and boating applications, providing a reliable and efficient 12V power source. Designed to withstand the harsh marine environment, it ensures your communication, control, and other essential devices operate smoothly and safely onboard.

Key Features

• High Output Power: Delivers a robust 300 watts of continuous power to support a wide range of marine electronics.
• Universal AC Input: Compatible with worldwide AC input ranging from 85 to 265 VAC at 50 or 60 Hz, making it ideal for various marine settings.
• Digital Signal Processor Control: Ensures precise regulation and efficient power delivery.
• Active Power Factor Correction: Optimizes AC power usage for maximum efficiency.
• Adjustable Voltage: Easily set the output voltage using front panel controls or the free PowerWizard software from www.analyticsystems.com.
• Durable Construction: Built to endure high vibrations and harsh marine conditions.
• Advanced Safety Protections: Includes over-temperature shutdown, current limiting, short circuit protection, input under-voltage shutdown, and output over-voltage protection with automatic recovery.
• Enhanced Indicators: Seven dual-color LEDs provide clear status updates on output current and fault conditions.
• Connectivity Options: Features Canbus, RS232, and remote control ports for seamless integration with marine systems.
• Warranty: Backed by a five-year parts and labor warranty for peace of mind.

Technical Specifications

Parameter	Specification
Output Current	20/25A
Output Voltage	12V (Adjustable)
Input Voltage	85-265 VAC
Frequency	50/60 Hz
Output Power	300 Watts
Protection Features	Over Temperature, Current Limiting, Short Circuit, Input Under Voltage, Output Over Voltage
LED Indicators	Seven Dual Color LEDs
Connectivity	Canbus, RS232, Remote Control Port
Warranty	5 Years Parts & Labor

Enhanced Safety and Reliability

Safety is paramount in marine environments, and the PWI320 Intelligent Power Supply is equipped with multiple protection mechanisms to ensure the safety of your onboard electrical systems. The power supply automatically shuts down in case of overheating, excessive current draw, short circuits, under-voltage, or over-voltage conditions, and it recovers automatically once normal conditions are restored.

Customization and Control

Customize your power supply settings effortlessly with the intuitive front panel controls or the PowerWizard software. Whether you need to adjust the voltage to match specific battery requirements or integrate the power supply with your boat's control systems, the PWI320 offers the flexibility you need for optimal performance.

Marine-Grade Durability

Designed for the rigors of marine use, the PWI320 features high vibration rugged duty construction and, for the PWI320MW model, MIL connectors, additional input and output filtering, and an IP66 sealed casing to protect against water and dust ingress.

Easy Installation and Connectivity

With simple front panel controls and various connectivity options, installing the PWI320 Intelligent Power Supply on your vessel is straightforward. The dry contact output fail relay carrying handle ensures reliable connections to your marine loads, enhancing overall system integration and performance.

Why Choose PWI320 for Your Marine Power Needs?

The PWI320 Intelligent Power Supply combines high performance, versatility, and robust safety features, making it the perfect choice for marine and boating applications. Trust in its reliability to power your essential systems and keep your vessel running smoothly.
