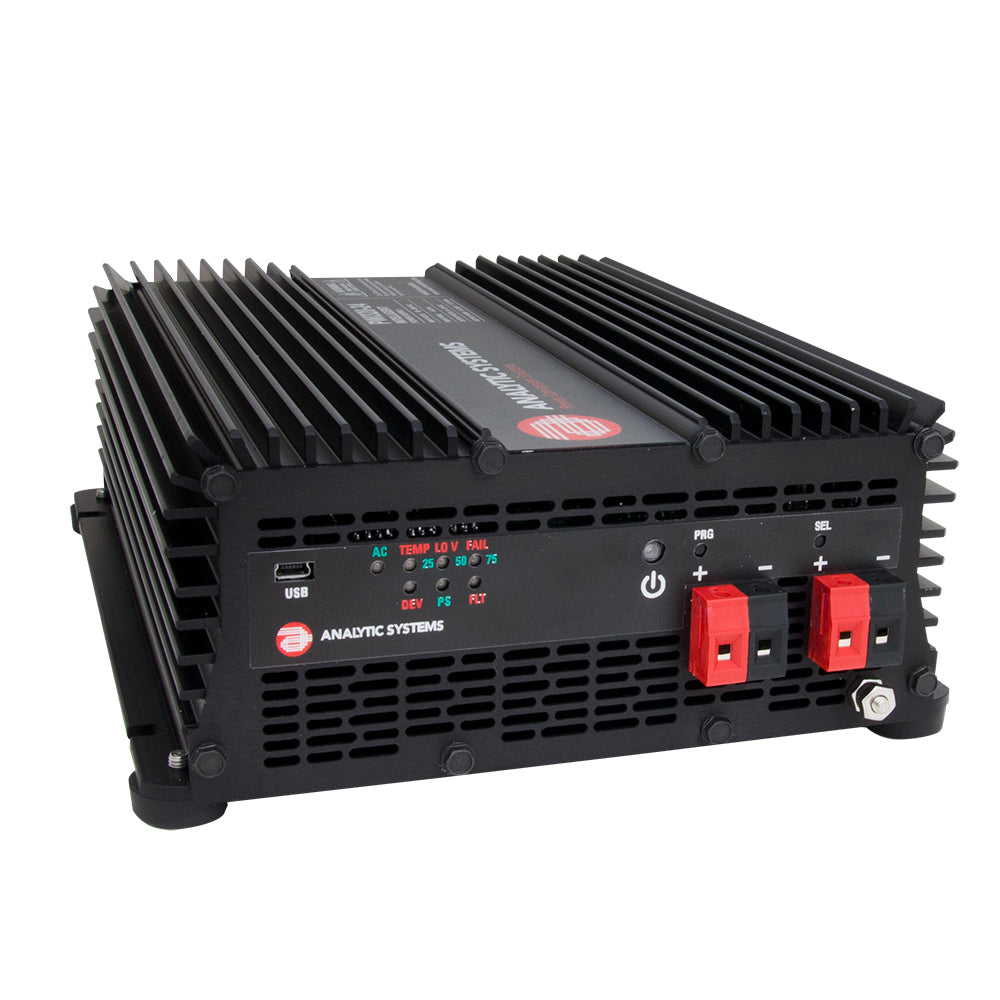

Analytic Systems AC Power Supply 10/13A, 24V Out, 85-265V In

The PWI320 Intelligent Power Supply is your reliable solution for delivering up to 300 watts of consistent power to your marine electronics, communication systems, and control devices. Designed specifically for marine applications, it ensures efficient energy usage and dependable performance even in the most demanding boating environments.

Powerful and Versatile Performance

With a full 300 watts of output power, the PWI320 is ideal for a wide range of marine devices, from navigation systems to onboard communication equipment. The advanced Digital Signal Processor (DSP) control provides precise power management, while the universal input voltage range of 85-265 VAC at 50 or 60 Hz ensures compatibility with various power sources encountered on your voyages.

Key Specifications

Output Power	300 Watts
Output Voltage	24V DC (adjustable)
Input Voltage	85-265 VAC, 50/60 Hz
Protections	Over Temperature Shutdown, Current Limiting, Short Circuit Protection, Input Under Voltage Shutdown, Output Overvoltage Protection
Connectivity	Canbus, RS232, Remote Control Port
Warranty	5-Year Parts and Labour

Intuitive Controls and Configuration

The PWI320 is preset to match the nominal battery voltage when fully charged (e.g., 13.6V for a 12V system), ensuring seamless integration with your vessel's electrical setup. Adjust the output voltage effortlessly using the user-friendly front panel controls or the PowerWizard software, available for free download from www.analyticsystems.com.

Robust Safety Features

Safety is paramount on the water. The PWI320 includes multiple protection mechanisms such as:

• Over Temperature Shutdown
• Current Limiting
• Short Circuit Protection
• Input Under Voltage Shutdown
• Output Overvoltage Protection with Automatic Recovery

Additionally, seven dual-color LEDs provide clear indicators of output current levels and any faults, enabling easy monitoring and troubleshooting.

Marine-Grade Durability

The PWI320MW variant is specially designed for marine environments, featuring MIL connectors, enhanced input and output filtering, and an IP66 waterproof rating. These enhancements ensure that the power supply withstands the harsh conditions at sea, providing reliable performance and longevity.

Advanced Features

• Digital Signal Processor Controlled: Ensures precise and stable power delivery for all your marine electronics.
• Universal Worldwide AC Input: Seamlessly adapts to different power standards, ideal for vessels operating internationally.
• Computer Programmable: Easily customize settings to fit specific marine applications.
• Simple Front Panel Controls: Convenient adjustments without the need for extensive technical knowledge.
• Easy Connection to Loads: Simplifies wiring and integration with onboard devices.
• High Vibration Rugged Duty: Built to endure the constant vibrations and movements of a marine environment.
• Dry Contact Output Fail Relay Carrying Handle: Facilitates integration with marine monitoring systems for fail-safe operations.
• Canbus / RS232 / Remote Control Port: Offers versatile connectivity options for integrated control and monitoring.
• Five-Year Parts and Labour Warranty: Provides long-term reliability and support for your marine power needs.
