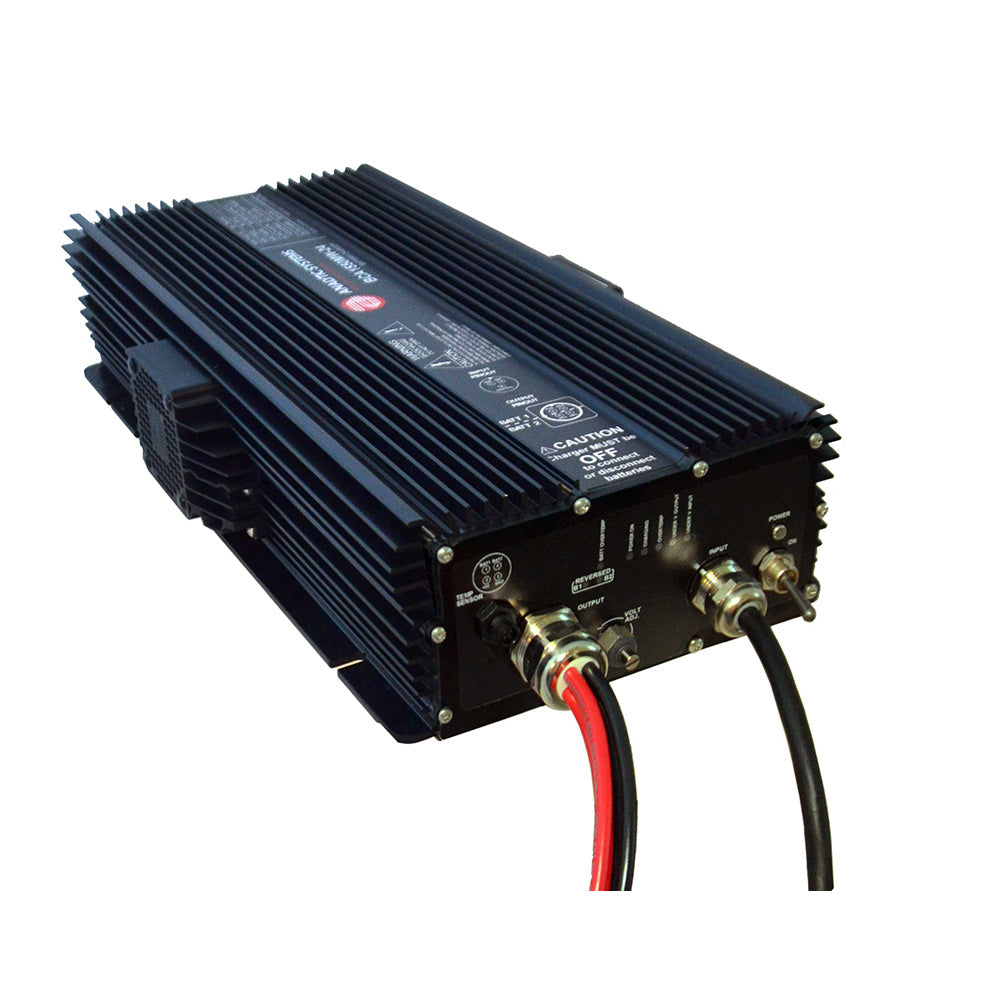

Analytic Systems AC Charger 2-Bank, 41A, 32V Out, 110/220 In, IP66 Rated, Ruggedized Wide Temp

The BCA1550 Series marine battery charger is engineered to deliver robust and reliable charging power for your boat's electrical system. Designed for harsh marine environments, this charger ensures your batteries are maintained with precision, providing peace of mind on every voyage.

Product Overview

The BCA1550 Series battery charger offers up to 1000 watts of charging power, capable of supporting single or dual battery systems at various DC voltages. Whether you're cruising on a 24V system or a 36V rail setup, this charger adapts seamlessly to your marine power needs. Its versatile input range of 85 – 264 VAC ensures compatibility with marine power sources worldwide.

Key Features

• Power Factor Corrected AC Input for efficient energy use
• Fast and precise charging to keep your marine batteries in top condition
• Dual functionality as a reliable power supply for onboard electronics
• Intuitive LED status indicators for monitoring operation and troubleshooting
• Durable construction with heavy-duty aluminum chassis and IP66 rating for water and dust resistance
• Thermostatically controlled cooling fans for optimal performance
• Comprehensive safety features including reverse polarity protection and short circuit shutdown
• Five-year parts and labor warranty for long-term reliability

Technical Specifications

Parameter	Specification
Input Voltage (AC)	85-265 VAC (110/220V)
Input Current (Max Amps)	41 A
Output Voltage (DC)	32 VDC
Charging Current	41 A
Number of Battery Banks	2
IP Rating	IP66
Mounting	Panel Mount
Approvals	CSA, UL
Net Weight	12 lbs
Gross Weight	12 lbs
Portable	No

Enhanced Reliability for Marine Use

Built with a ruggedized design, the BCA1550 Series is perfect for the demanding conditions of the marine environment. Its heavy-duty extruded aluminum chassis and ventilated panels provide superior durability against corrosion and wear. The Power Factor Corrected (PFC) input stage allows continuous operation from 85 – 264 VAC at 50 or 60Hz, maintaining a Power Factor of 0.99 or better from 10% to 100% load. Heavy input filtering significantly reduces EMI, preventing interference with your boat's sensitive electronics.

Safety and Protection Features

• LED status indicators for real-time monitoring
• Built-in input circuit breaker to prevent overloads
• Thermal shutdown to protect against overheating
• Current limiting to safeguard your batteries
• Reverse polarity protection to prevent incorrect connections
• Output short circuit shutdown with automatic recovery

Installation and Maintenance

The BCA1550 Series is designed for easy panel mounting, integrating seamlessly into your boat's existing electrical setup. Thermostatically controlled cooling fans ensure optimal performance even in extreme temperatures, while stainless steel fasteners enhance durability. LED indicators provide clear feedback on charging status and potential errors, simplifying maintenance and ensuring uninterrupted power supply for your marine equipment.

Warranty and Support

We stand behind the quality and reliability of the BCA1550 Series with a five-year parts and labor warranty. Our dedicated support team is available to assist you with installation, troubleshooting, and any questions you may have to ensure your marine electrical system operates flawlessly.

Download the Owner's Manual (PDF)
