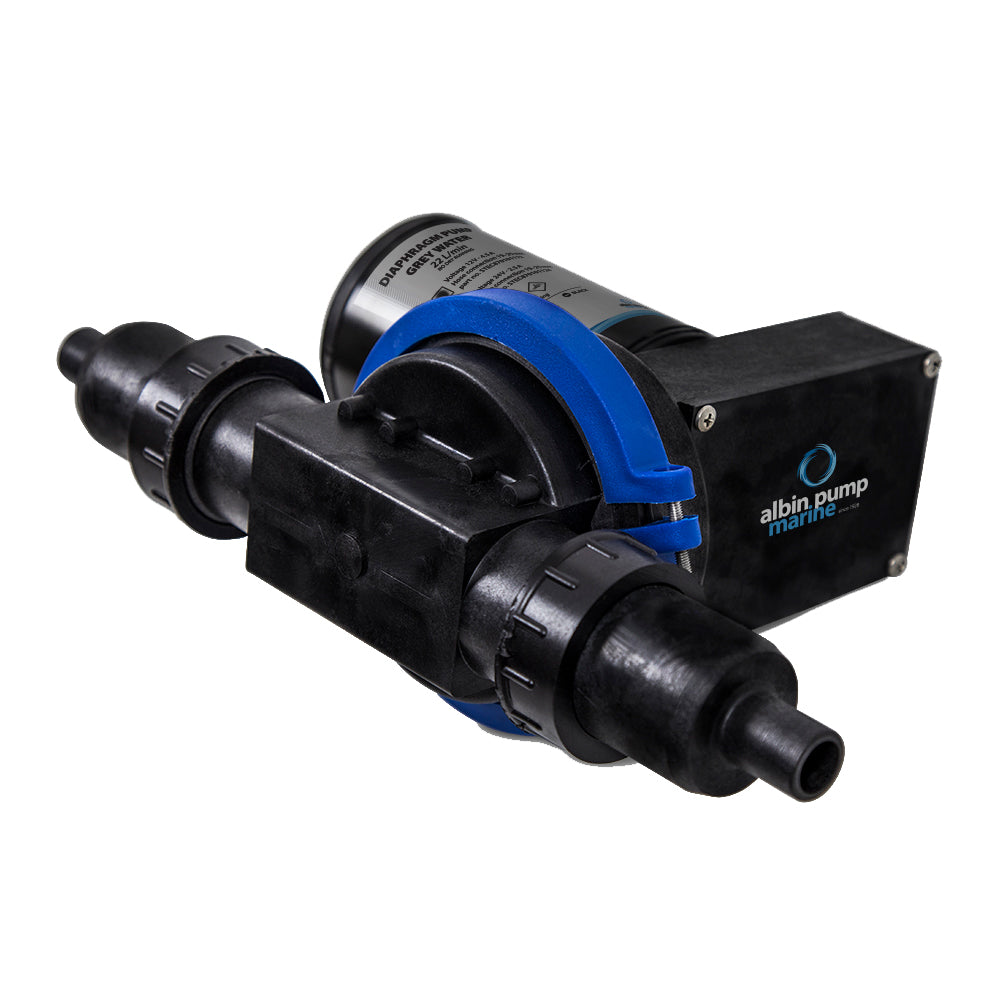

Albin Group Waste Water Diaphragm Pump 22L (5.8 GPM) - 12V

Installing the reliable Waste Water Diaphragm Pump ensures efficient handling of grey or bilge water onboard your vessel. Designed for marine and boating applications, this 12V pump offers self-priming capabilities and versatile connectivity, making it ideal for shower drains, water transfers, and bilge pumping.

Product Features

• Flexible installation with 360-degree rotational ports
• Quiet operation and low power consumption
• Operates without the need for a filter

Specifications

Product Weight	0.8 kg / 1 lb
Product Dimensions (L x H x W)	141 mm x 105 mm x 140 mm / 5.5" L x 4" H x 5.5" W
Box Dimensions (H x W x L)	7" H x 9" W x 12" L
Box Weight	5.5 lbs
Type	Bilge/Grey Water
Capacity	22 L/min (5.8 GPM)
Fuse	4.5A
Color	Black
Inlet Size	3/4" or 1"
Outlet Size	3/4" or 1"
Voltage	12V
Type	Waste Pumps
UPC	7340176600738

Included Accessories

Includes 19mm (3/4″) and 25mm (1″) straight connectors. Fully interchangeable with Johnson Pump model 10-13350-03, providing flexibility for various installation needs.

Certifications

Certified with CE marked 94/25/ECC and ISO8846 Small Craft. Complies with Electromagnetic Compatibility 89/336/EEC and EN51014 1993 standards for radio disturbance.
