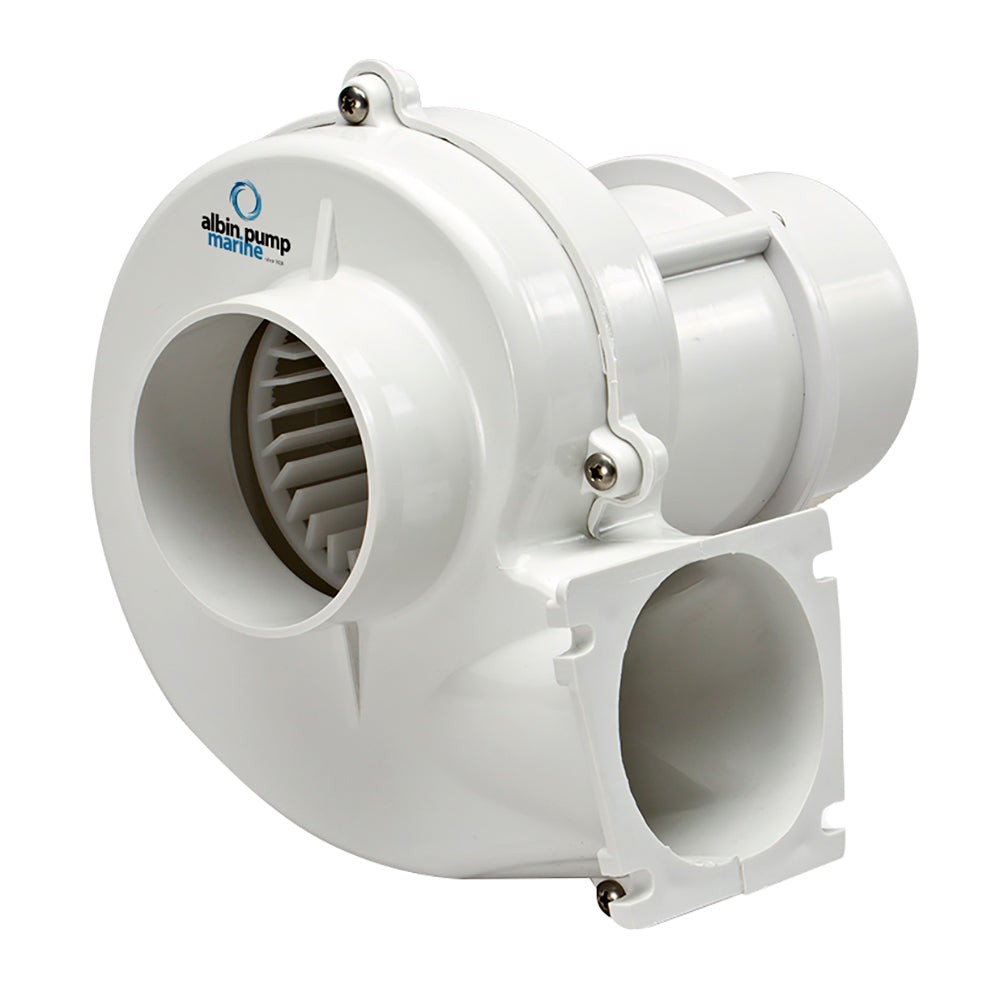

Albin Group Marine Air Blower 280 Flange - 24V

Enhance your vessel's ventilation system with the Air Blower 280 Flange - 24V, a robust and efficient 3″ flange-mounted marine blower. Designed for high-performance marine applications, this radial blower ensures optimal air circulation, keeping your boat comfortable and well-ventilated.

Product Features

• Lightweight Construction: Weighs just 0.88 kg (1.5 lbs), making installation straightforward without adding significant weight to your vessel.
• Compact Dimensions: Measures 200 mm (7.87 L) x 165 mm (6.6 H) x 195 mm (7.7 W), allowing for easy integration into tight spaces within your marine setup.
• High Airflow Capacity: Delivers a substantial airflow of 280 m³/h (163 CFM), ensuring efficient ventilation throughout your boat.
• Dual 72mm Ports: Features both inlet and outlet ports of 72mm diameter, providing versatile ducting options for various ventilation configurations.
• Durable Build: Constructed from hermoplastic PA6 high-durability white Nylon, the blower body resists harsh marine environments and ensures longevity.
• Integrated Blower Motor: Equipped with a reliable motor integrated into the blower for seamless operation and maintenance.
• Electrical Protection: Includes a 2A fuse to safeguard against electrical faults, ensuring safe operation on your vessel.
• Compatibility: Interchangeable with Jabsco 34739-0020 and Johnson Pump 80-47416-02 models, making it a versatile replacement option.
• Certified for Marine Use: CE marked with multiple certifications including ISO 9097:1991 for marine electrical fans, ISO8846 1990 for ignition protection, ISO 10133 2000 for electrical systems, and EN55014-1 2006 (2004/108EC), ensuring compliance with marine industry standards.

Technical Specifications

Attribute	Specification
Ducting Size	3"
Airflow Capacity	163 CFM (280 m³/h)
Operating Voltage	24V
Device Dimensions	200 mm (7.87 L) x 165 mm (6.6 H) x 195 mm (7.7 W)
Device Weight	0.88 kg / 1.5 lbs
Package Dimensions	8" H x 8" W x 9" L
Package Weight	2.4 lbs
UPC	7340176602411
