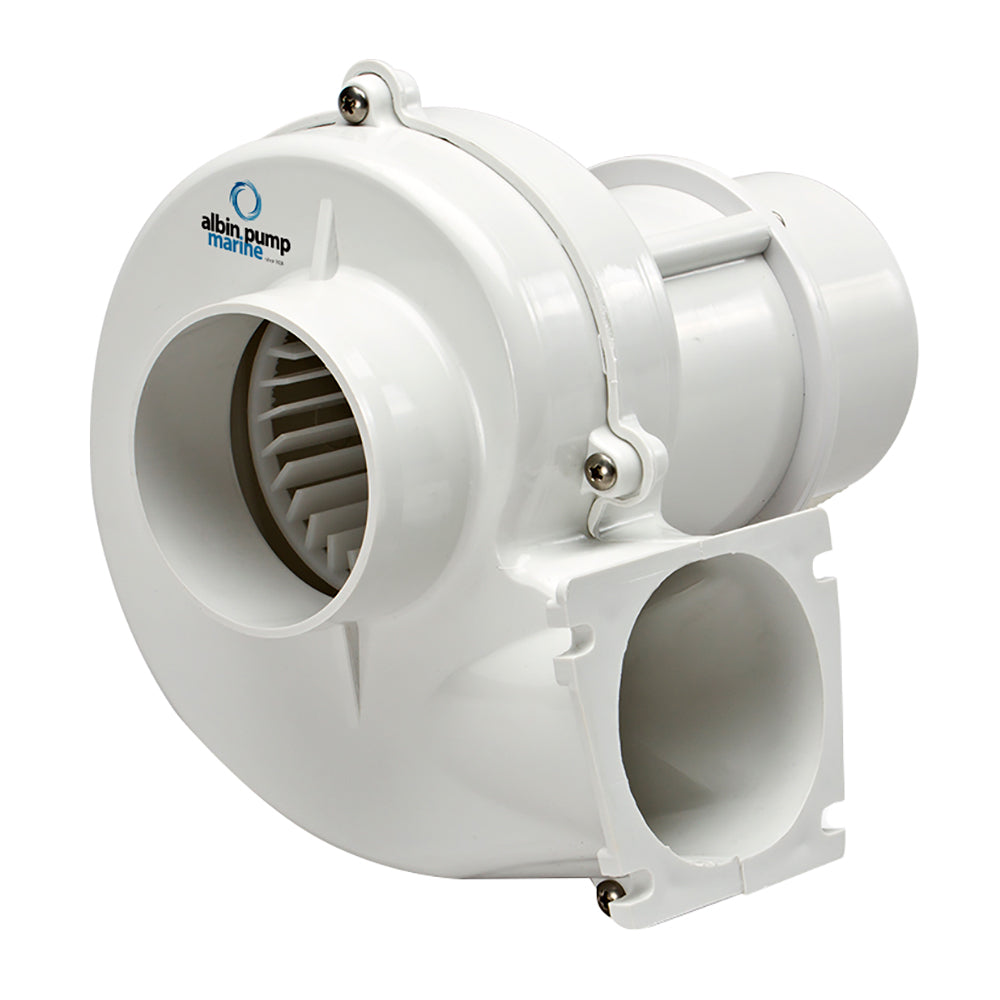

Albin Group Marine Air Blower 280 Flange - 12V

The Marine Air Blower 280 Flange - 12V is a high-performance 3-inch flange-mounted ventilation solution designed specifically for marine and boating applications. Engineered with durability and efficiency in mind, this radial blower ensures optimal airflow and reliability in your vessel's electrical systems.

Key Features

• Lightweight Design: Weighs only 0.88 kg (1.5 lbs), making installation hassle-free.
• Compact Dimensions: Measures 200 mm (7.87” L) x 165 mm (6.6” H) x 195 mm (7.7” W), suitable for various marine environments.
• 3-Inch Flange: Standard flange size ensures easy integration with existing ducting setups.
• Integrated Blower Motor: Built into a hermoplastic PA6 high durable white Nylon body for long-lasting performance.
• Protective Fuse: Equipped with a 3.8A fuse for enhanced electrical safety.
• High Airflow Capacity: Delivers 280 m³/h (163 CFM) to maintain proper ventilation.

Technical Specifications

Parameter	Details
Ducting Size	3 inches
Open Flow	163 CFM
Voltage	12V DC
Inlet Diameter	72 mm
Outlet Diameter	72 mm
Weight	0.88 kg / 1.5 lbs
Dimensions	200 mm (L) x 165 mm (H) x 195 mm (W) / 7.87” L x 6.6” H x 7.7” W
Box Dimensions	8” H x 8” W x 8” L
Box Weight	2.5 lbs
UPC	7340176602404

Compatibility and Certifications

This Marine Air Blower is interchangeable with various models such as Jabsco 34739-0010 and Johnson Pump 80-47416-01, ensuring seamless integration with your existing marine systems.

Certified with CE markings and compliant with the following standards:

• ISO 9097:1991 - Marine (small craft electrical fans)
• ISO 8846:1990 - Ignition Protection
• ISO 10133:2000 - Electrical Systems
• EN55014-1:2006 (2004/108EC)

Installation Guide

Installing the Marine Air Blower 280 Flange - 12V is straightforward with the 3-inch flange mount, allowing for quick and secure setup in your vessel's ventilation system. Ensure proper electrical connections and fuse protection as per the specifications for optimal performance.
