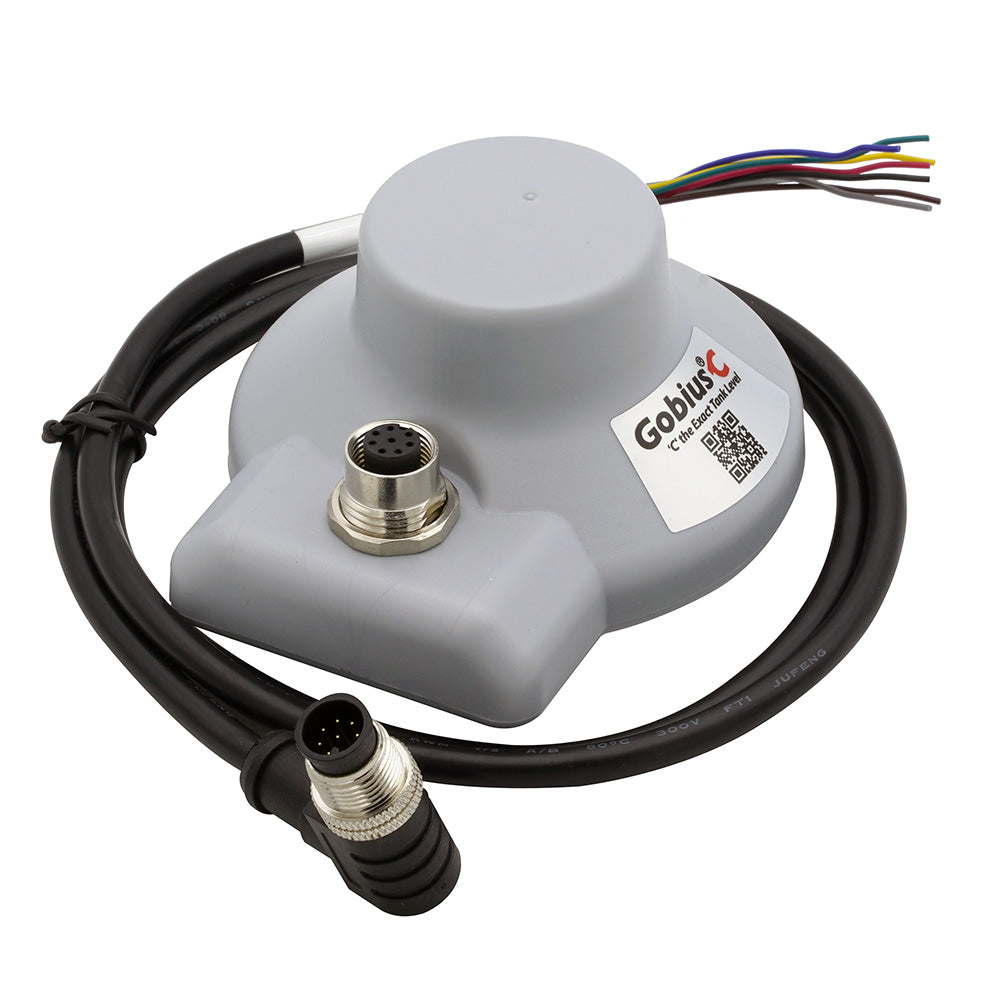

Albin Group Gobius C External Fluid Level Sensor/Tank Monitor
Albin Group Gobius C External Fluid Level Sensor/Tank Monitor is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Gobius C External Fluid Level Sensor is the perfect addition to your marine setup, providing reliable and accurate tank monitoring without the need for tank disassembly. Its advanced features ensure seamless integration with your vessel’s existing systems, enhancing safety and efficiency on the water.
Easy Installation and Setup

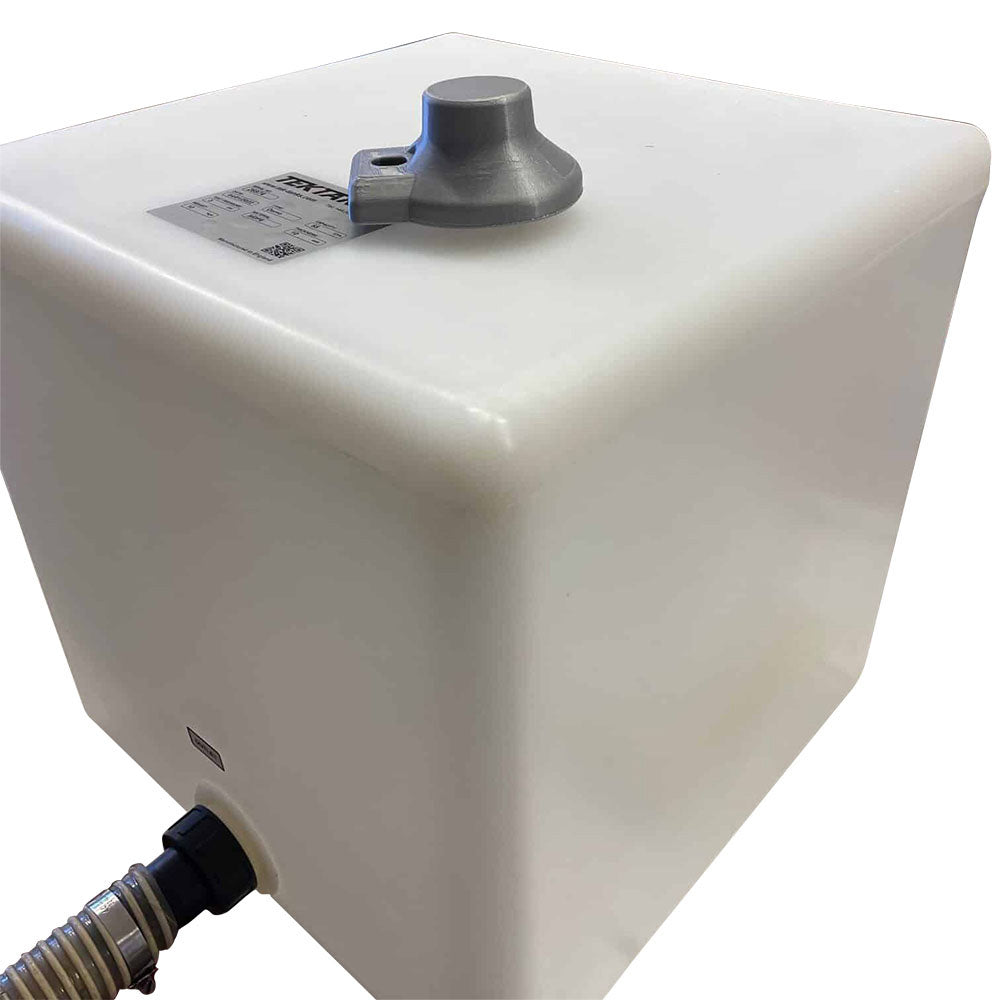

Designed for hassle-free plug-and-play installation, the Gobius C sensor mounts effortlessly on the top of your tank using the same straightforward method as other Gobius products. Installation does not require tank removal, reducing the risk of leaks and ensuring the integrity of your marine vessel.
Comprehensive Features
- Compatible with all types of liquids
- Automatic configuration for user convenience
- Built-in Tank Calculator for precise measurements
- Wave motion reduction technology for stable readings
- Non-invasive installation—no need to remove the tank
- Reads levels through plastic tanks
- No restrictions on tank wall thickness
- Fits standard holes in metal tanks (1.25″ SAE 5)
- Eliminates the need for internal tank cleaning
- Low maintenance design ensures longevity
Measurement Capabilities
| Function | Specification |
|---|---|
| Measuring Range | 0-2000 mm |
| Measuring Interval | 1 second |
| Resolution | 1 mm |
| Accuracy | ± 2-3 mm |
| Tank Geometries | Rectangular, Irregular, Vertical Cylindric, Horizontal Cylindric |
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 9-28 V DC |
| Connector | Female 8 pins |
| Digital Outputs | Two level alarms |
| Current Outputs | 4-20 mA (galvanically insulated) |
| Resistance Outputs | 10-180 & 240-33 Ohm |
| Voltage Output | 0-5 V |
| Power Consumption | 10 mA |
| Bluetooth | Version 5.0 |
| Additional Sensors | Temperature sensor, accelerometer, micro radar sensor |
| Max Voltage | 30 V |
| Max Current | 500 mA |
| Waterproof Rating | IP44 |
Sensor Specifications
| Specification | Details |
|---|---|
| Weight | 65 grams |
| Dimensions | Height: 65 mm, Width: 95 mm |
| Sensor Height (incl. adapter for metal tanks) | 75 mm |
| Cable Length | 1 m |
| Connector Type | On the sensor |
| Material | ABS |
| Color | Silver |
| Waterproof | IP44 |
Advanced Software Features
- Compatible with iOS, Android, and Windows PC
- Easy installation, configuration, and removal through the app
- Accurate level calculations displayed in percentage and liters
- Bluetooth version 5.0 connectivity with the option to toggle on/off
- Supports two digital outputs with four distinct states
- Intuitive display interface on your mobile device
- Built-in test functions to ensure optimal performance
- Comprehensive support features within the app
For more detailed information, please download our Brochure (PDF).
