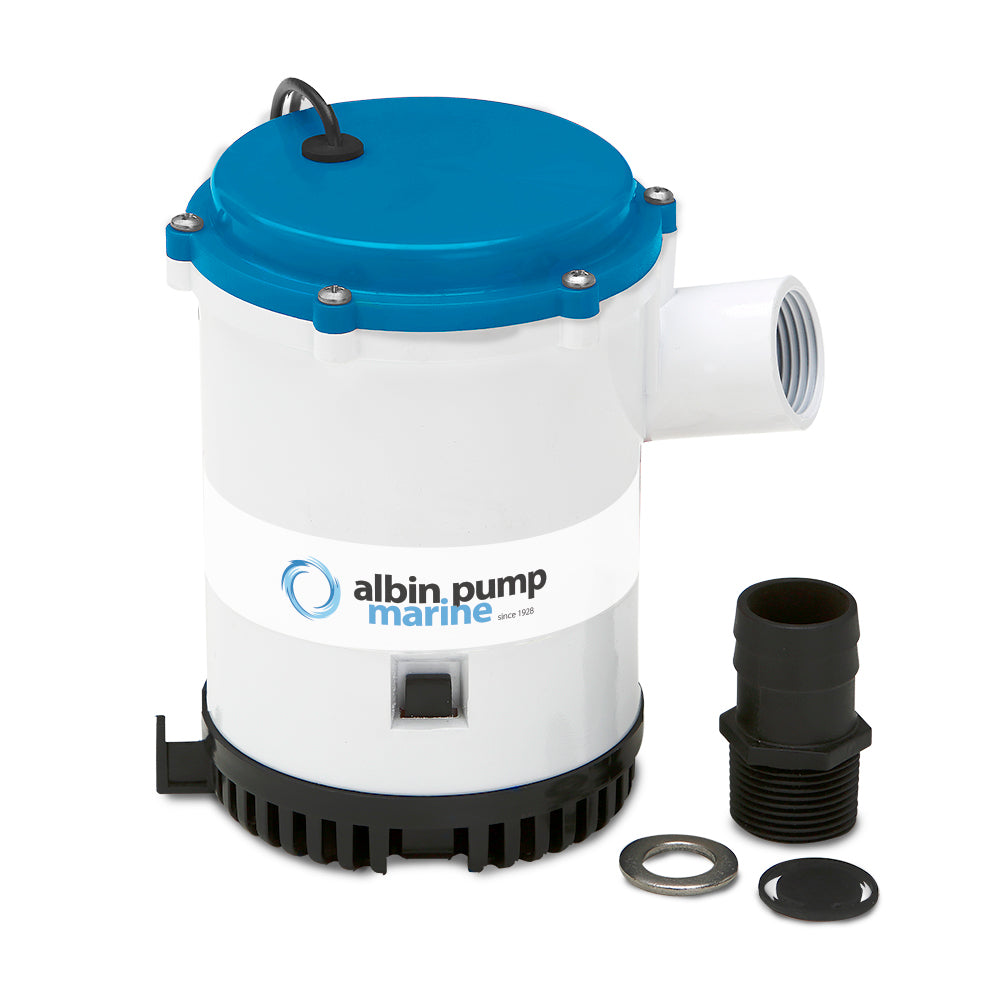

Albin Group Bilge Pump Heavy Duty 2250 GPH - 12V

The Bilge Pump Heavy Duty 2250 GPH - 12V is a reliable and powerful solution designed for marine and boating enthusiasts. Engineered to efficiently remove unwanted water, this submersible bilge pump ensures your vessel remains safe and dry under various conditions.

Product Overview

This heavy-duty, submersible bilge pump operates on a robust 12V system, delivering a pump capacity of 140 L/min (2250 GPH) and 120 L/min (1900 GPH) at a 1-meter head. Built with durability in mind, it features a stainless steel shaft, double ball bearings, and a mechanical seal, all housed within a tough thermoplastic ABS casing. The long-life motor design ensures dependable performance for both pleasure and commercial boats.

Key Features

• High-capacity pumping: 2250 GPH (140 L/min) at 1m head.
• Durable construction with stainless steel shaft and double ball bearings.
• Mechanical seal to prevent leaks and extend pump life.
• Tough thermoplastic ABS housing for superior resistance to harsh marine environments.
• Universal base plate equipped with a strainer and pin for easy installation.
• Compatible with Rule 2000 and Johnson Pump 22004/32-2200-01 models.
• Includes check valve to prevent backflow and ensure efficient operation.
• Multiple outlet sizes: 32mm (1.25") and 38mm (1.5").

Specifications

Parameter	Details
Type	Electric
Voltage	12V
Flow Rate	2250 GPH (37 GPM)
Operation	Non-Automatic
Outlet Sizes	1-1/4" or 1-1/2"
Weight	1 lb (0.9 kg)
Dimensions	150/6L x 170/6.7H x 130/5W mm/in
Fuse Rating	8A
Box Dimensions	6"H x 7"W x 8"L
Weight	4.45 lbs
UPC	7340176600127

Compliance and Certifications

This bilge pump is CE marked according to 94/25/ECC and complies with ISO8846 for Small Craft. It meets the electromagnetic compatibility standards of 89/336/EEC and EN51014 1993 for radio disturbance.

Installation and Compatibility

The pump comes with a universal base plate featuring a strainer and a pin for attaching a level switch, enabling automatic operation. It is interchangeable with Rule 2000 and Johnson Pump models 22004/32-2200-01, ensuring versatility and ease of replacement.

Watch it in Action
