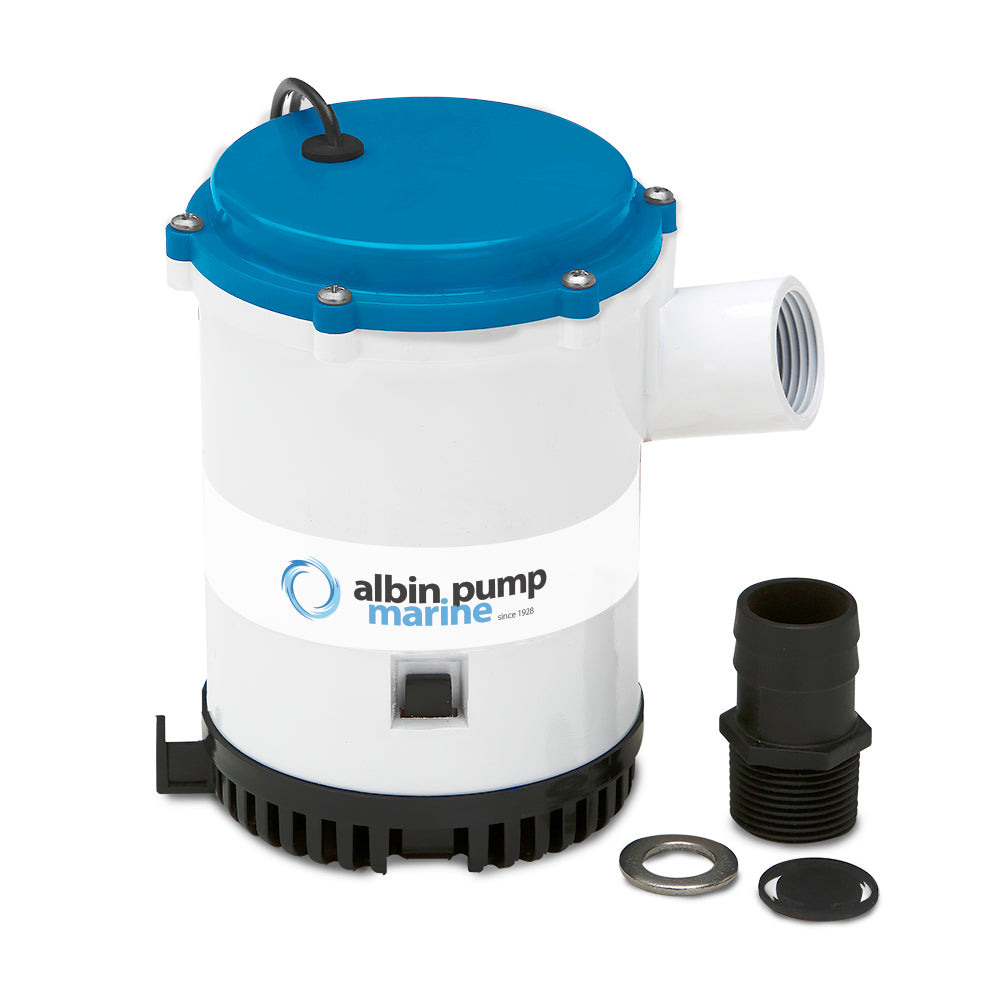

Albin Group Bilge Pump Heavy Duty 1750 GPH - 12V

Ensure your vessel stays dry and safe with our Heavy Duty 1750 GPH 12V Bilge Pump. Designed for pleasure and commercial boats over 30 feet, this submersible pump delivers exceptional performance and durability in demanding marine environments.

Key Features

• Heavy-duty submersible design for reliable performance
• Ideal for pleasure or commercial boats over 10 meters (30 feet) in length
• Interchangeable with Rule 1500 and Johnson Pump 16004-00 /32-1600-01 models
• High pumping capacity of 1750 GPH (110 L/min) at 1m head
• Secondary pumping rate of 1350 GPH (85 L/min) at 1m head
• Stainless steel shaft and double ball bearings for enhanced durability
• Mechanical seal and tough thermoplastic ABS housing
• Robust long-life motor design ensures longevity
• Universal base plate with strainer and pin for easy installation
• Compatible with level switches for automatic operation
• Includes check valve and multiple outlet port sizes (32mm and 38mm)

Technical Specifications

Type	Electric
Voltage	12V
Pump Capacity	1750 GPH (110 L/min) at 1m head
Secondary Pump Capacity	1350 GPH (85 L/min) at 1m head
Gallons Per Minute	29 GPM
Operation	Non-Automatic
Outlet Size	1-1/4" or 1-1/2"
Dimensions	150/6L x 170/6.7H x 130/5W mm/in
Weight	0.7 kg / 1 lb
Box Dimensions	6"H x 7"W x 8"L
Weight (Including Packaging)	4.6 lbs
Fuse	6A
UPC	7340176600103

Certifications and Compliance

This bilge pump is CE marked under 94/25/ECC and complies with ISO8846 Small Craft standards. It also adheres to Electromagnetic Compatibility Directive 89/336/EEC and EN51014:1993 for radio disturbance, ensuring reliable performance in various marine environments.

Compatibility and Installation

The pump features a universal base plate with a strainer and pin, facilitating easy installation. It supports “T-slot” connections for integrating a level switch, enabling automatic operation. Additionally, the pump is interchangeable with Rule 1500 and Johnson Pump models 16004-00 and 32-1600-01, ensuring seamless compatibility with a wide range of marine systems.
