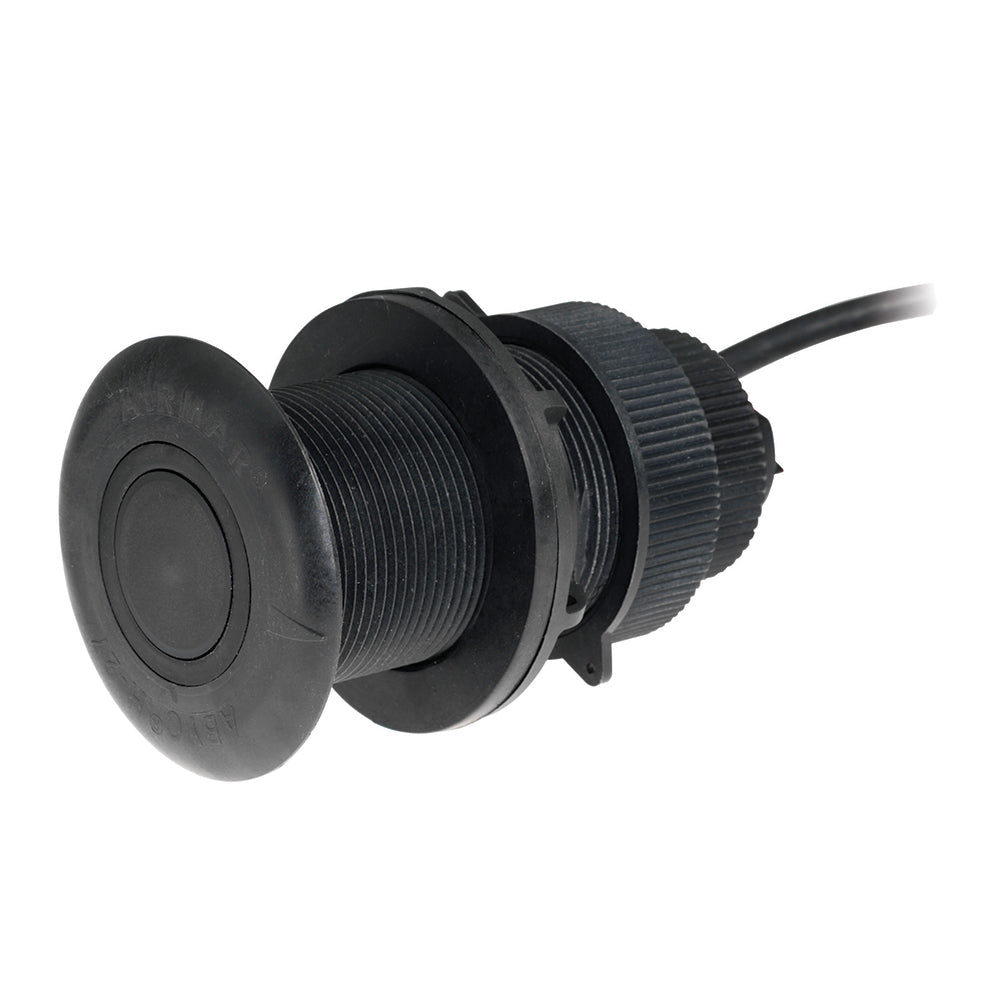

Airmar DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12 Tilt - NMEA 2000 - 6M Cable

The DT812PV-235-N2 is a high-performance plastic thru-hull smart sensor designed for marine applications, providing precise depth and temperature measurements. Engineered with Airmar's advanced Tilted Element™ and broadband technologies, this sensor ensures reliable data transmission through NMEA 2000 networks, making it an essential addition to any power or sailboat setup.

Key Features

Feature	Description
Frequency	235 kHz
Maximum Depth Range	183 meters (600 feet)
Minimum Depth Range	0.5 meters (1.6 feet)
Tilt Options	0°, 12°, 20°
Housing Material	Plastic, Bronze, Stainless Steel
Cable Length	6 meters (19.8 feet) NMEA 2000® devicenet cable included
Power	100 W RMS

Superior Performance and Reliability

The DT812PV-235-N2 operates at a frequency of 235 kHz, which minimizes interference with other marine electronics, including fishfinders. Its broadband ceramic transducer ensures accurate depth readings up to 183 meters while maintaining precision in shallow waters as little as 0.5 meters. The fixed 12° tilt is optimized for deadrises between 8° and 15°, making it versatile for various hull types and water conditions.

Smart Technology for Enhanced Data Processing

Airmar's Smart™ Sensors integrate embedded microelectronics, bringing the transducer element and signal processor in close proximity. This design allows the sensor to process depth and temperature data internally, reducing signal loss and ensuring high accuracy. The straight-down oriented transducer beam enhances bottom echo returns, providing consistent and reliable readings.

Durable and Easy to Install

The DT812PV-235-N2 features a low-profile, retractable housing that is available in plastic, bronze, or stainless steel to match your vessel's needs. These robust housings do not compromise hull performance and can withstand high-speed operations. The retractable insert with a self-closing valve minimizes water ingress when removed for cleaning, enhancing the sensor's longevity and ease of maintenance.

Comprehensive Specifications

Specification	Details
Frequency	235 kHz
Cone Angle	12°
Usable Shaft Length	57 mm (2.25”)
Housing Size	51 mm (2”)
Hull Thickness Compatibility	Minimum: 6.3 mm (0.25”), Maximum: 54 mm (2 1/8”)
Included Accessories	6M NMEA 2000® devicenet cable, blanking plug

Why Choose the DT812PV-235-N2?

• Enhanced Depth Performance: Achieve accurate depth measurements across a wide range of conditions.
• Versatile Tilt Options: Choose from 0°, 12°, or 20° tilt to suit your specific boating needs.
• Durable Construction: Select from plastic, bronze, or stainless steel housings for long-lasting performance.
• Seamless Integration: Compatible with NMEA 0183 and NMEA 2000® displays for easy data visualization.
• Minimized Interference: Operates at 235 kHz to prevent interference with other onboard electronics.
• Easy Installation and Maintenance: Retractable design and included accessories make setup and upkeep straightforward.
