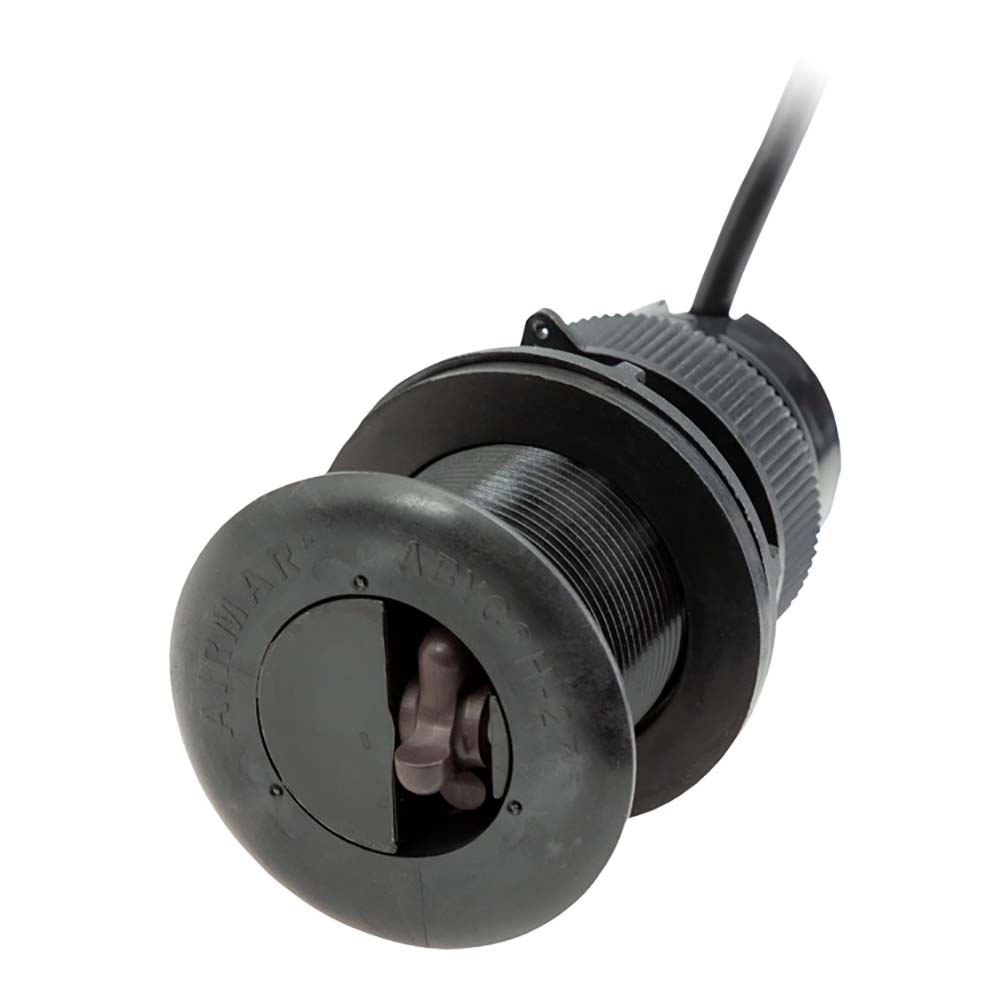

Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth

The DST810 Smart Sensor is a cutting-edge marine device designed to enhance your boating experience by providing accurate measurements of depth, speed-through-water, water temperature, and boat attitude. Equipped with Bluetooth Low Energy (BLE) and fully compatible with NMEA 2000 networks, the DST810 offers seamless integration and wireless calibration, ensuring optimal performance for both sailing enthusiasts and powerboaters.

Advanced Features

• High-Speed Data Output: Provides 5 Hz speed-through-water measurements, delivering smoother and more reliable data for informed decision-making on the water.
• Integrated Attitude Sensor: Monitors heel and trim, offering valuable insights for both sailboats and powerboats to optimize performance and stability.
• Broad Depth Range: Measures depths from as shallow as 0.5 meters (1.6 feet) up to 100 meters (330 feet), making it suitable for a variety of marine environments.
• Wide Speed Range: Accurately measures speeds up to 45 knots, catering to both leisurely and high-speed boating activities.
• Precision Temperature Sensing: Detects water temperatures with an accuracy of ±0.5°C (±1.8°F), ensuring precise environmental data.
• Durable Build: Designed to withstand hull deadrise up to 22°, making it reliable in diverse boating conditions.

Seamless Wireless Calibration with Airmar's CAST™ App

The DST810 Smart Sensor pairs effortlessly with Airmar's CAST™ App, providing a user-friendly interface for calibrating speed-through-water measurements. This wireless connectivity allows boaters to perform basic and advanced calibrations without the need for expensive PC-based software. Key benefits include:

• Intuitive speed calibration compatible with any onboard display system.
• Heel-compensated speed calibration across multiple heel angles and speed ranges for enhanced accuracy.
• Storage of all speed calibrations and NMEA configurations directly within the DST810 sensor, eliminating dependency on display units.
• Control over PGN settings, including enabling/disabling and setting offset and output rates.

Optimized for Sailing

• Enhanced Speed Data: 5 Hz speed output provides smoother and more accurate speed-through-water readings, crucial for performance sailing.
• Easy Calibration: Effortlessly calibrate speed and configure data settings using the CAST App, ensuring reliable performance under varying conditions.
• Comprehensive Data Integration: Access depth, heel-corrected speed-through-water, heel and trim, and water temperature data from a single installed multisensor.

Ideal for Powerboats

• Comprehensive Monitoring: Delivers 5 Hz speed, depth, pitch and roll, and water temperature data, providing essential information for high-speed and performance boating.
• Simple Adjustments: Easily perform depth offsets and corrected speed-through-water measurements via the CAST™ App, ensuring optimal performance.
• Shallow-Water Performance: Features a popular depth sensor capable of accurate measurements in shallow waters, enhancing navigation safety and efficiency.

Technical Specifications

Specification	Details
Frequency	235 kHz
Depth Range	0.5 m (1.6') to 100 m (330')
Speed Range	Up to 45 knots
Speed Output Frequency	5 Hz (5X per second)
Temperature Range	-10°C to 40°C (14°F to 104°F)
Temperature Accuracy	±0.5°C (±1.8°F)
Wireless Protocol	Bluetooth Low Energy (BLE)
Wireless Range	Up to 30 feet (dependent on mount location)
Standard Cable Length	6 m (20')
Mounting Style	Thru-Hull
Connection Gender	Male
Pins	5
Data Interface	NMEA 2000
Supply Voltage	9 VDC to 16 VDC (per NMEA 2000 standards)
Box Dimensions	4"H x 8"W x 10"L
Weight	2.1 lbs
UPC	801769018677
