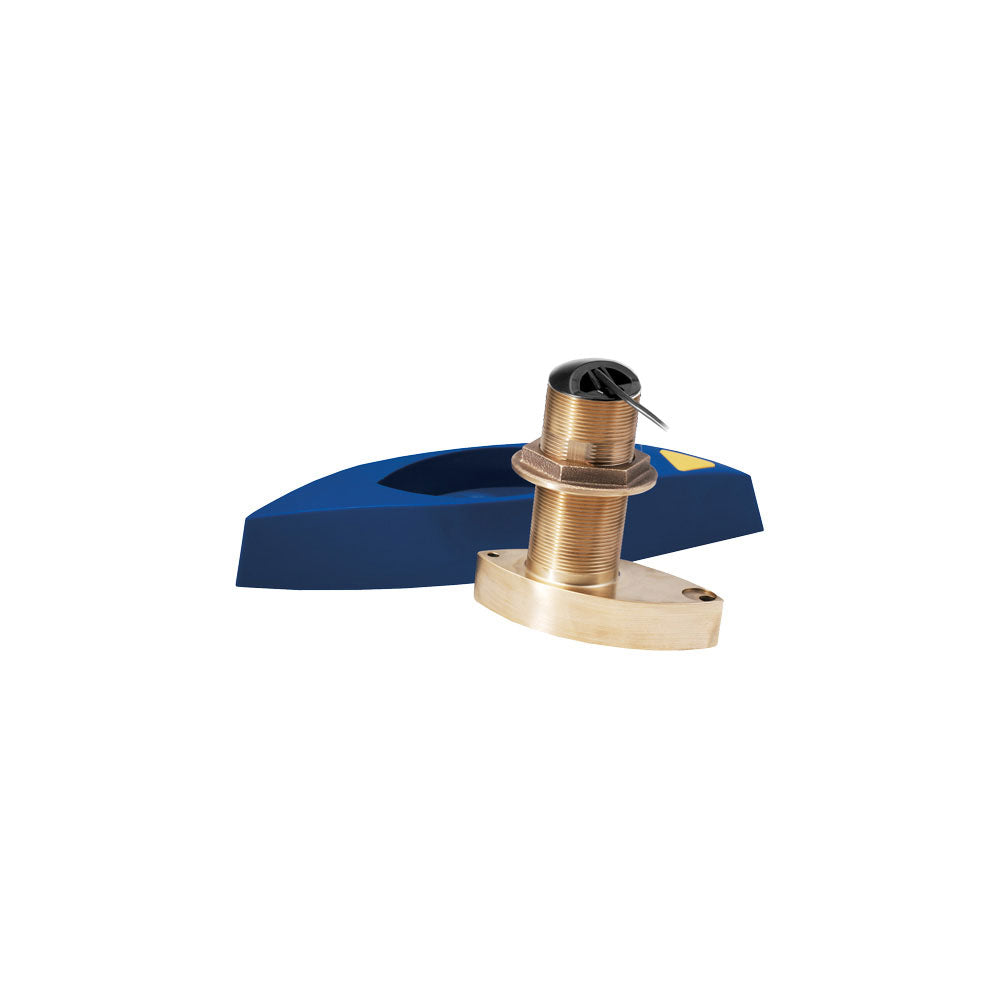

Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix Match Cable - Does NOT Work w/Simrad Lowrance

The B765C-LM Bronze CHIRP Transducer by Airmar is engineered to elevate your fishing experience with unparalleled precision and depth detection. Designed specifically for smaller fishing boats, this thru-hull transducer delivers exceptional performance, enabling anglers to identify baitfish, game fish, and underwater structures with remarkable clarity.

Advanced CHIRP Technology for Superior Fishing Performance

Harness the power of Airmar’s broadband CHIRP transducers to achieve your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, the B765C-LM is your reliable partner on the water. CHIRP technology enhances bottom detection capabilities up to 3,000 meters (10,000 feet), providing 5 to 10 times greater detail and resolution compared to traditional transducers.

Broadband Capabilities

The B765C-LM operates across multiple frequency bands, offering comprehensive coverage for various fishing scenarios:

Frequency Range	Band	Operating Power
40-75 kHz	Low Frequency (L)	300 W
80-130 kHz	Medium Frequency (M)	600 W

With a total bandwidth of up to 85 kHz from a single transducer, the B765C-LM simplifies installations, saving you both time and money.

Key Features

• Depth and fast-response water-temperature sensor
• Low CHIRP: 40 kHz to 75 kHz with 32° to 21° beamwidth
• Medium CHIRP: 80 kHz to 130 kHz with 24° to 16° beamwidth
• Comprehensive coverage of popular fishing frequencies including 50, 88, and 107 kHz
• Compact design suitable for smaller boats without compromising performance
• Durable bronze housing with high-performance fairing for long-lasting use
• Compatible with boats up to 9 meters (30’) and above
• Versatile hull compatibility: Fiberglass or wood
• Exclusive Xducer ID® technology for seamless integration
• Hull deadrise support up to 24° with a fairing
• Acoustic window made of urethane for reliable performance
• Lightweight design at 2.5 kg (5.5 lb)

Please note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Specifications

Feature	Specification
Temperature Sensor	Yes
Speed Included	No
Connector Type	Bare Wires
Mounting Style	Thru-Hull
Imaging	Standard
CHIRP Capability	Low/Medium
Cable Length	40 ft
Box Dimensions	4" H x 12" W x 16" L
Weight	7.7 lbs

Additional Resources

For more detailed information, download our Brochure (PDF).
