Airmar B75HW High Wide Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull

The B75HW High Wide Tilted Element CHIRP Transducer is designed for anglers and boaters seeking superior sonar performance on center consoles and smaller vessels. With its 20-degree deadrise tilt and robust 600W thru-hull installation, this transducer delivers exceptional target separation and expansive coverage, enhancing your fishing and navigation experience.

Key Features

• Advanced Sonar Technology: Operates within a high-frequency range of 150 to 250 kHz, providing clear fish-target returns and detailed bottom imaging.
• Wide Beamwidth: A 30° beamwidth ensures maximum coverage beneath your boat, enhancing visibility in depths up to 106 meters (350').
• Low-Profile Design: Mounted nearly flush with the hull, the transducer reduces drag and maintains a sleek boat profile while delivering high-resolution data even at high speeds.

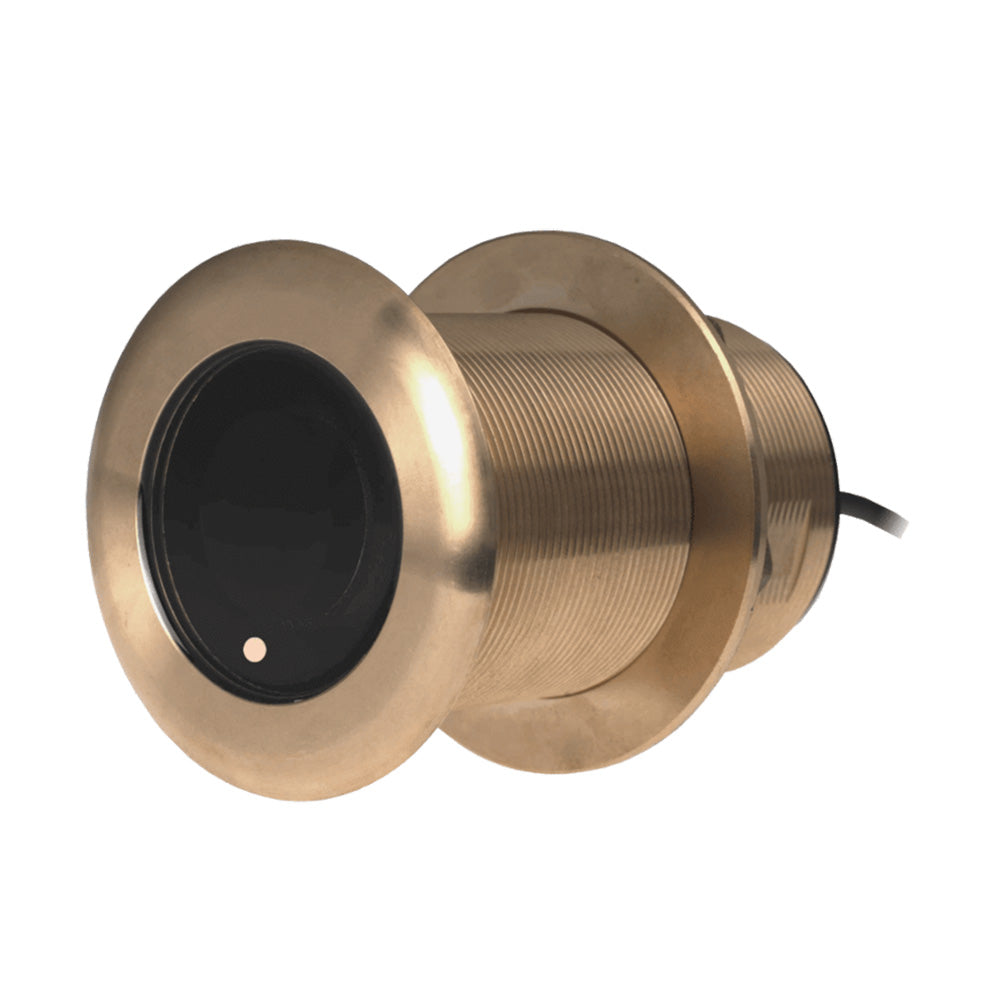

• Durable Construction: Crafted with a bronze thru-hull housing, it is suitable for stepped, planing, or displacement hulls, ensuring longevity and reliability in various marine environments.

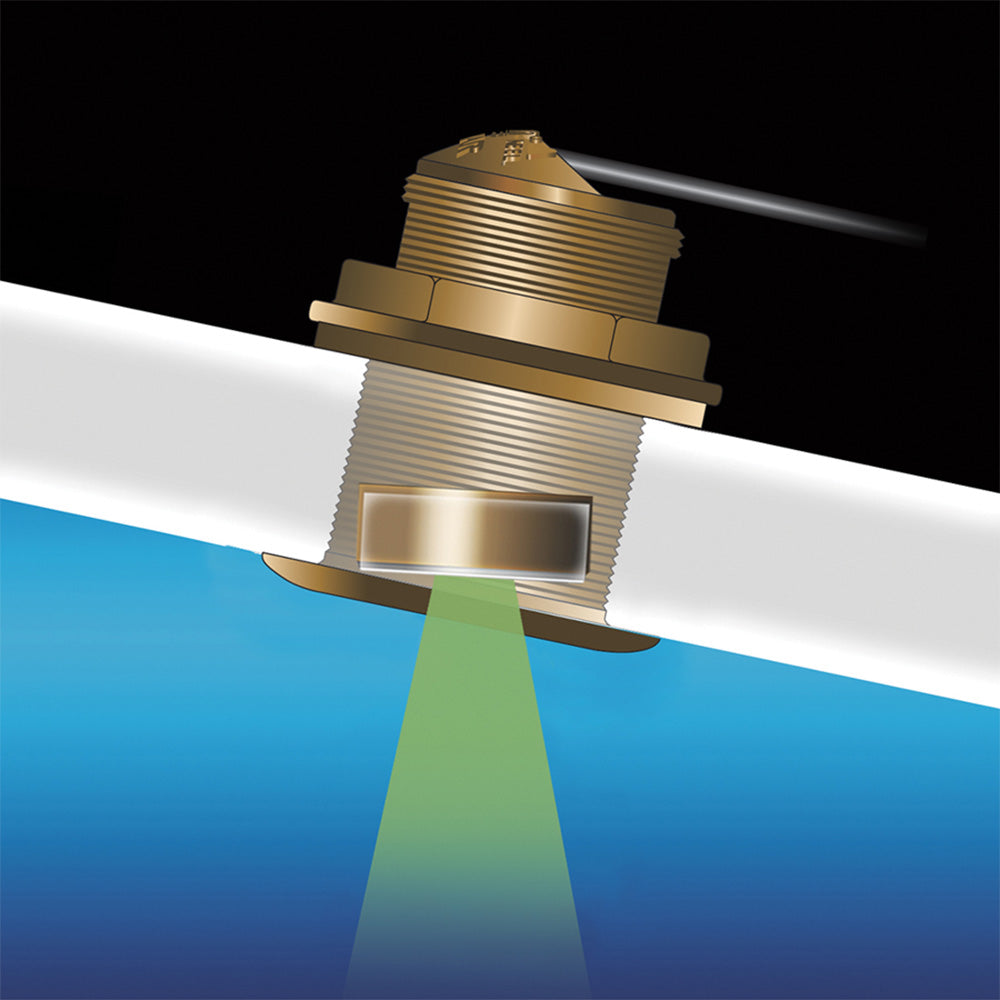

• Accurate Depth Readings: The fixed 20° tilted element compensates for hull deadrise between 16° and 24°, directing the sonar beam straight downward for precise depth measurements.
• CHIRP-Ready: Compatible with CHIRP technology, enhancing sonar clarity and performance for better fish detection.
• Exclusive Xducer ID® Technology: Ensures seamless integration with compatible fishfinders, optimizing performance and functionality.

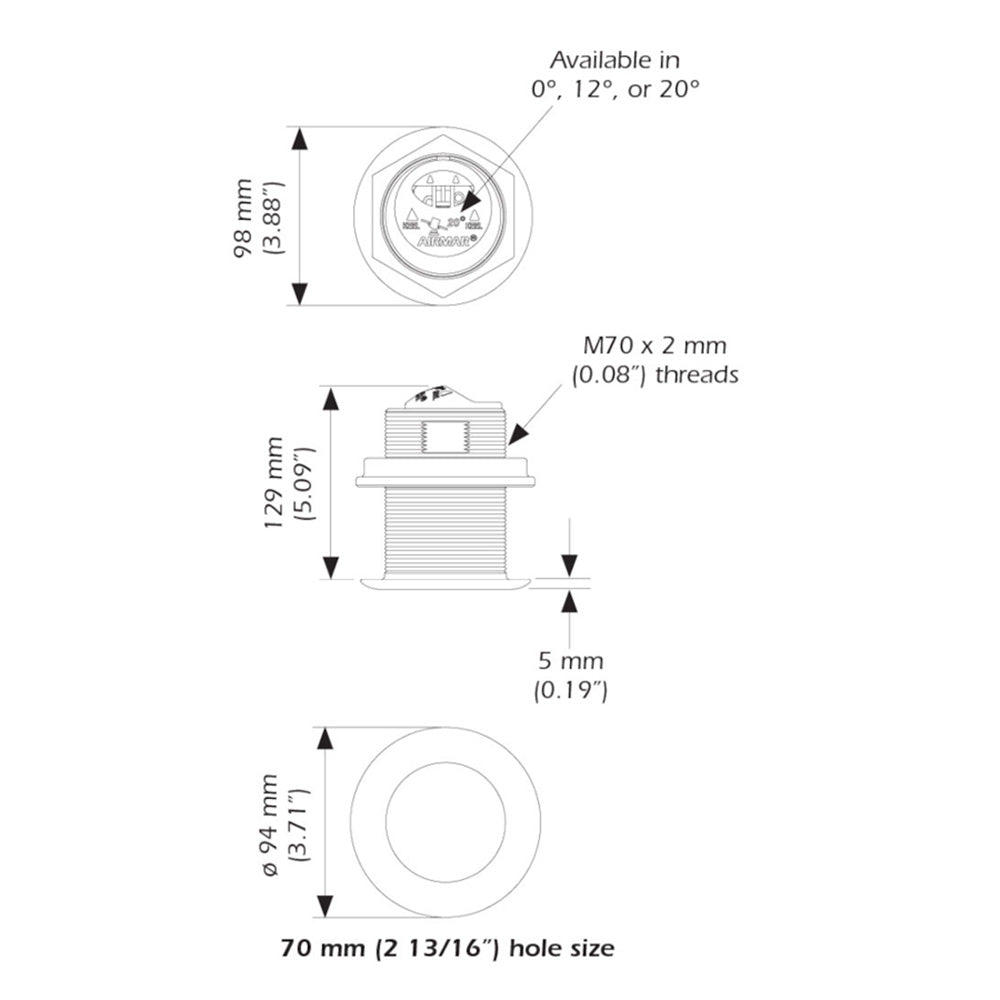

Technical Specifications

Installation Requirements

The B75HW transducer requires a compatible Mix and Match cable tailored to your specific fishfinder model for optimal performance. Proper installation is essential; we recommend professional installation to ensure a flush mount with the hull and correct element tilt, maximizing sonar efficiency and accuracy.
