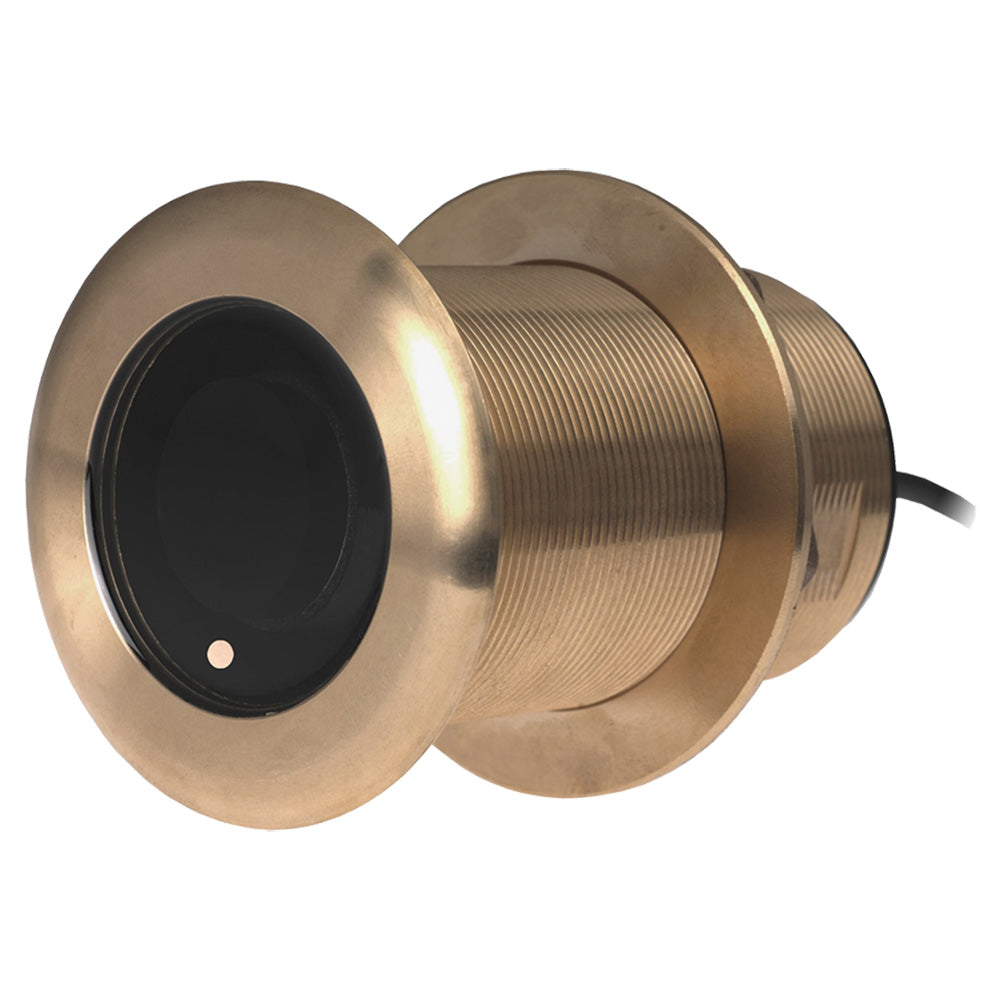

Airmar B60 Thru-Hull Transducer 20 Tilt 9-Pin f/Navico xSonic

The B60 Thru-Hull Transducer with a 20° tilt is engineered for precision and performance, making it an ideal choice for marine enthusiasts using Navico xSonic systems. Its innovative Tilted Element™ technology ensures accurate depth readings by correcting for hull deadrise angles, providing reliable sonar performance whether you're cruising on a center-console or trailered boat.

Key Features

• Advanced Sensing Capabilities: Measures depth and provides fast-response water temperature readings for comprehensive marine monitoring.
• High Power Output: Equipped with a robust 600 W power rating to deliver strong and clear sonar signals.
• Dual-Frequency Operation:
  • 50 kHz with a wide 45° beamwidth, offering depth performance up to 353 m (1200').
  • 200 kHz with a focused 12° beamwidth, providing depth performance up to 206 m (700').
• Optimized for Various Vessels: Perfectly suited for both center-console and trailered boats, ensuring versatility across different marine applications.
• Low-Profile Design: The bronze housing extends only 5 mm (3/16") beyond the hull, minimizing impact on your boat’s hydrodynamics and running performance.
• Durable Construction: Made with bronze housing for use with fiberglass or wood hulls, with an alternative stainless steel (SS60) option available for all hull materials.

Innovative Tilted Element™ Technology

The Tilted Element™ feature sets the B60 apart by mounting the ceramic element at a precise 20° angle within the housing. This strategic tilt corrects for the hull's deadrise angle when installed nearly flush with the hull, ensuring the sonar beam is directed straight down. The result is enhanced echo returns and more accurate depth measurements, providing you with the reliable data you need for safe and enjoyable boating.

Technical Specifications

Specification	Details
Power Rating	600 W
Max Deadrise Angle	24°
Housing Material	Bronze (also available in Stainless Steel SS60)
Functions	Depth, Temperature
Compatible Hull Materials	Fiberglass, Wood
Maximum Vessel LOA	Up to 8 m (26')
Hole Size	60 mm (2-3/8")
Usable Shaft Length	68.5 mm (2.70")
Acoustic Window	Urethane
Common Uses	Leisure/Yachting, Fishing
Conventional Beam	45°/12°
Maximum Depth	Low Frequency: 366 m (1200') High Frequency: 206 m (700')
Mounting Style	Tilted Element Thru-Hull
Retractable Housing	No
Frequency Type	Conventional Dual Frequency
Tilted Element	Yes
Weight	1.4 kg (3 lbs.)
Pins	9-Pin
Box Dimensions	2"H x 8"W x 8"L
Weight (Box)	5.8 lbs

Why Choose the B60 Thru-Hull Transducer?

Designed for durability and high performance, the B60 Thru-Hull Transducer ensures minimal interference with your vessel’s operations. Its low-profile bronze housing not only provides robustness but also maintains the sleek appearance of your hull. The dual-frequency capability allows for versatile usage, whether you're navigating deep waters or require precise shallow water readings.

Installation and Compatibility

Installing the B60 is straightforward, thanks to its Thru-Hull mounting style and 9-Pin configuration. The transducer is compatible with fiberglass and wood hulls, and for those requiring greater versatility, a stainless steel housing option (SS60) is available. Its design ensures that it does not adversely affect your boat’s running performance, providing seamless integration with your existing setup.

Customer Support and Resources

Please note that this product cannot be returned to the original point of purchase. For any issues or concerns, contact the manufacturer directly to ensure you receive the support you need.

Owner's Manual (PDF)

Brochure (PDF)
