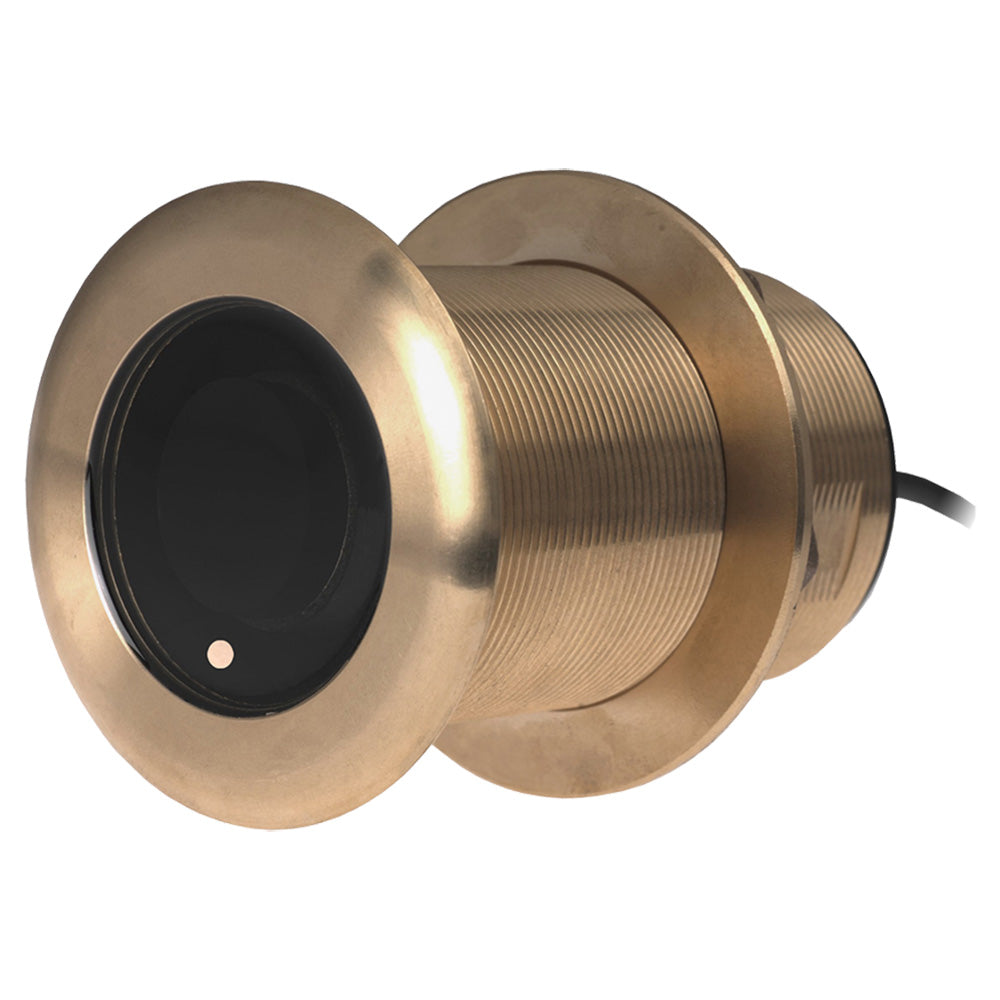

Airmar B60 20 Bronze Thru-Hull Mix Match Cable Needed

The B60 20° Bronze Thru-Hull Mix & Match Cable is a high-performance transducer designed for marine enthusiasts seeking accurate depth and temperature readings. Featuring Airmar’s innovative Tilted Element™ technology, this transducer ensures optimal echo returns by aligning the ceramic element to compensate for hull deadrise angles, providing reliable performance for both center-console and trailered boats.

Key Features

• Depth and fast-response water temperature sensing
• Powerful 600 W output
• Dual-frequency operation:
• 50 kHz: Wide 45° beamwidth, depth performance up to 353 m (1200')
• 200 kHz: Narrow 12° beamwidth, depth performance up to 206 m (700')
• Low-profile bronze housing extends only 5 mm (3/16") outside the hull
• Minimal impact on boat’s running performance
• Compatible with fiberglass or wood hulls
• Also available in stainless steel housing (SS60) for all hull materials
• Integrates seamlessly with various marine systems
• Tilted Element™ ensures maximum echo returns for accurate readings

Technical Specifications

Feature	Specification
Power Rating	600 W
Max Deadrise Angle	24°
Housing Material	Bronze
Functions	Depth, Temperature
Compatible Hull Materials	Fiberglass, Wood
Maximum Vessel LOA	Up to 8 m (26')
Hole Size	60 mm (2-3/8")
Usable Shaft Length	68.5 mm (2.70")
Acoustic Window	Urethane
Common Uses	Leisure/Yachting, Fishing
Conventional Beam	45°/12°
Maximum Depth	50 kHz: 366 m (1200') 200 kHz: 206 m (700')
Mounting Style	Tilted Element Thru-Hull
Retractable Housing	No
Frequency	Conventional Dual Frequency
Tilted Element™	Yes
Weight	1.4 kg (3 lbs)
Chirp	No
Imaging	Standard
Speed Included	No
Box Dimensions	4"H x 8"W x 10"L
Weight (Package)	4.5 lbs
UPC	801769019537

Please note: This product may not be returned to the original point of purchase. If you encounter any issues or have concerns, contact the manufacturer directly for assistance.

Download Brochure (PDF)
