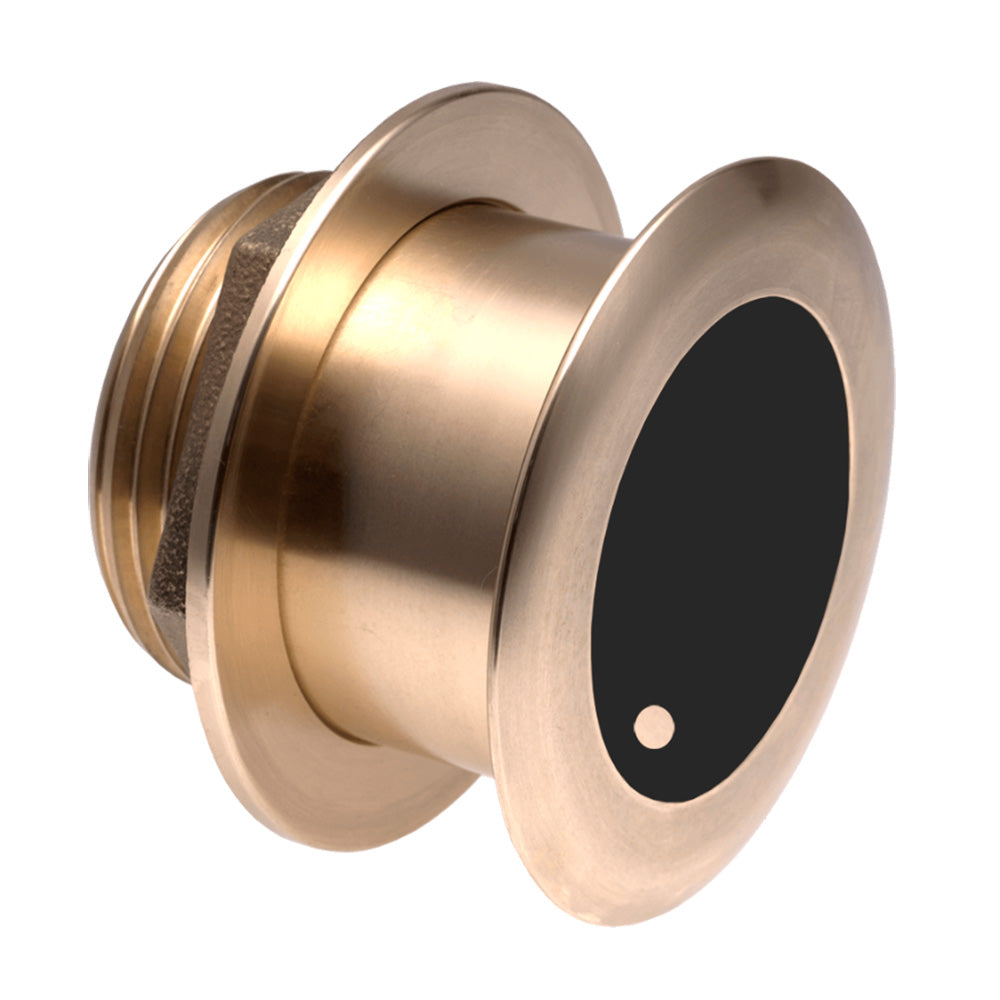

Airmar B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix Match Cable

Airmar’s Chirp-ready B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer is engineered to deliver exceptional performance for marine enthusiasts and anglers. With its medium frequency range and ultra-wide beamwidth, it offers superior target detection and fish separation, making it a perfect addition to your marine electronics setup.

Key Features

• Depth and fast-response water-temperature sensor
• Powerful 1 kW output with depth tracking down to 400 m (1,300')
• Medium frequency operation between 60-100 kHz for optimal mid-depth performance
• Ultra-wide beamwidth ranging from 57° to 73° port/starboard and an average of 16° fore/aft
• 40 kHz total bandwidth from a single transducer for comprehensive coverage
• Bronze housing suitable for stepped, planing, or displacement hulls
• Low-profile, thru-hull installation ensures high resolution even at speed
• Exclusive Xducer ID® technology for enhanced performance and compatibility

Specifications

Parameter	Details
Power Rating	1 kW
Max Deadrise Angle	24°
Housing	Bronze
Functions	Depth, Temperature
Hull Material	Fiberglass or Wood
Max Vessel LOA	Up to 11 m (36')
Hole Size	95 mm (3-3/4")
Mounting Style	Tilted Element Thru-Hull
Acoustic Window	Urethane
Cable Length	9 m (30')
Common Use	Fishing
Max Depth	400 m (1300')
Medium Frequency	60-100 kHz
Beamwidth	57° to 73° (Port/Starboard) × 16° average (Fore/Aft)
Frequency Mode	CHIRP-Ready Single-Band
Tilted Element	Yes
Water Temperature Range	-10° to 40°C (14° to 104°F)
Weight	2.7 kg (6 lbs)

Enhanced Compatibility and Performance

The B175MW Medium Ultra-Wide transducer pairs seamlessly with Airmar’s other models, such as the B275LHW, providing anglers with a comprehensive set of frequencies (Low, Medium-Wide, High-Wide) to cover targets from deep to shallow waters. Its medium frequency ensures superior mid-depth performance and excellent fish-target separation, making it ideal for those targeting pelagic species in the upper water column.

Superior Installation and Design

This transducer features AIRMAR’s Tilted Element™ technology, housed in a robust Bronze casing. The ceramic element is fixed at a 20° tilt, ensuring maximum echo returns by maintaining vertical orientation in various hull installations. The low-profile, thru-hull housing design allows for flush installation with the hull, enhancing resolution and performance even at higher speeds.
