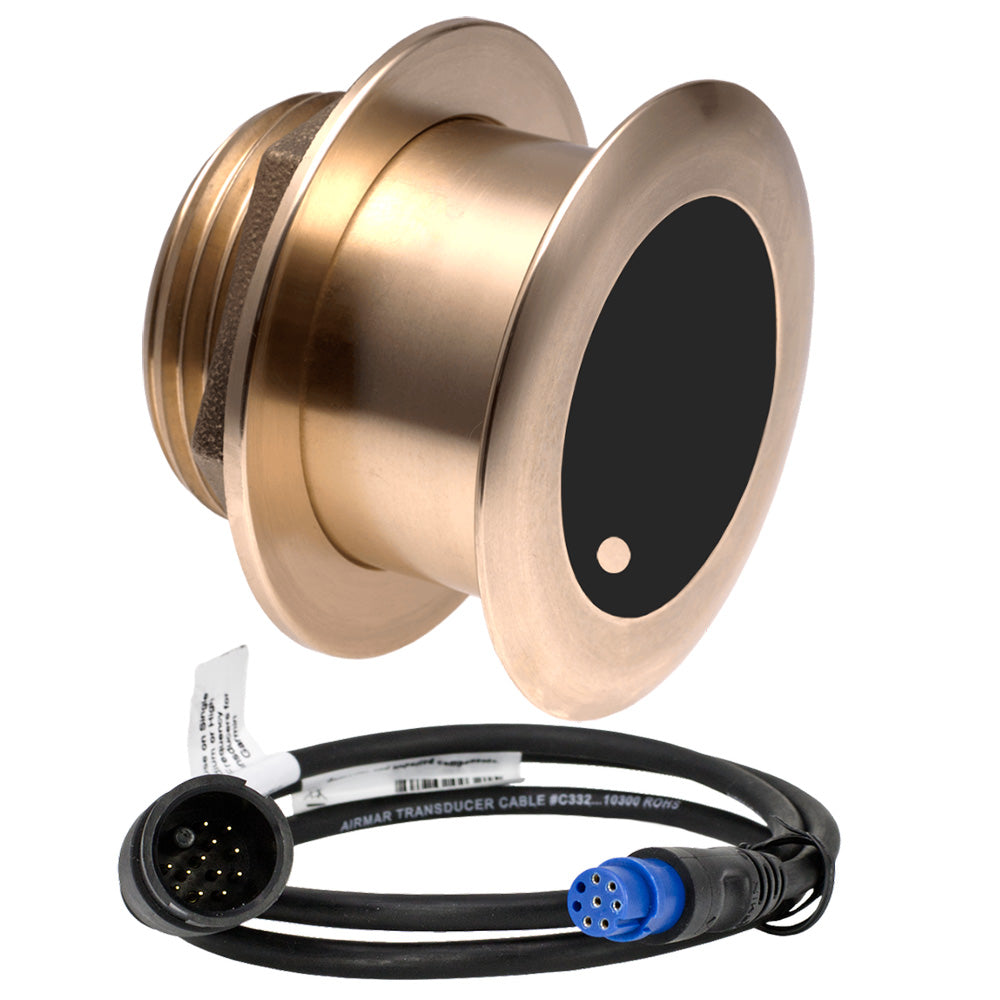

Airmar B175MW Med Ultra Wide 1kW, 20 Chirp Thru-Hull Transducer f/8-Pin Garmin

Airmar Technology introduces the B175MW Med Ultra Wide 20°, 1KW Chirp Thru-Hull Transducer, engineered specifically for anglers seeking superior underwater performance. Designed for compatibility with Garmin FishFinders, this transducer offers exceptional beamwidth and frequency capabilities, ensuring accurate target detection and enhanced fishing experiences.

Advanced Transducer Design

The B175MW features Airmar’s Tilted Element™ technology, setting a new standard in transducer performance. Operating within a medium frequency range of 60-100 kHz, it delivers an ultra-wide beamwidth of 57° to 73° port-starboard and a 16° average fore-aft. This expansive coverage allows anglers to efficiently scan the upper water column, making it ideal for targeting pelagic species.

Seamless Integration with Garmin

Equipped with an 8-pin connector, the B175MW seamlessly integrates with Garmin FishFinders, providing real-time depth and water temperature data. The transducer’s low-profile, thru-hull housing ensures excellent resolution even at higher speeds, making it perfect for various hull types including stepped, planing, and displacement hulls.

Key Features

• Fixed 20° Tilt: Optimally adjusts for hull deadrise angles between 16° and 24°
• High Power: 1 kW power rating with depth tracking capabilities down to 400 meters (1,300 feet)
• Wide Beamwidth: 57° to 73° port/starboard and 16° fore/aft for extensive coverage
• Durable Construction: Bronze housing suitable for various hull materials including fiberglass and wood
• Exclusive Technology: Features Airmar’s Xducer ID® for enhanced performance
• Temperature Sensing: Fast-response water-temperature sensor integrated
• Versatile Mounting: Low-profile thru-hull installation for superior performance at speed

Technical Specifications

Attribute	Details
Brand	Airmar Technology
Acoustic Window	Urethane
Cable Length	9 m (30'), 10 m (33')
Common Use	Fishing
Connector	Garmin 8-Pin
Country of Origin	USA
Display Connector	8G
Functions	Depth, Temperature
Hole Size	95 mm (3-3/4")
Hull Material	Fiberglass or wood
Material	Bronze
Max Deadrise Angle	24°
Max Depth	400 m (1,300')
Max Vessel LOA	Up to 11 m (36')
Medium Frequency	60-100 kHz
Beamwidth	57° to 73° port/starboard, 16° average fore/aft
Mounting Style	Tilted Element Thru-Hull
Power Rating	1 kW
Frequency Mode	Single
Tilt Angle	20°
Tilted Element	Yes
Water Temperature Range	-10° to 40°C (14° to 104°F)
Weight	2.7 kg (6 lbs.)

Why Choose the B175MW?

The B175MW Med Ultra Wide Transducer is ideal for anglers who demand reliability and precision. Its medium frequency range ensures superior mid-depth performance and excellent separation of fish targets, enhancing your fishing strategy and success rate. The durable bronze housing and versatile mounting options make it a perfect fit for various boat types and fishing environments.
