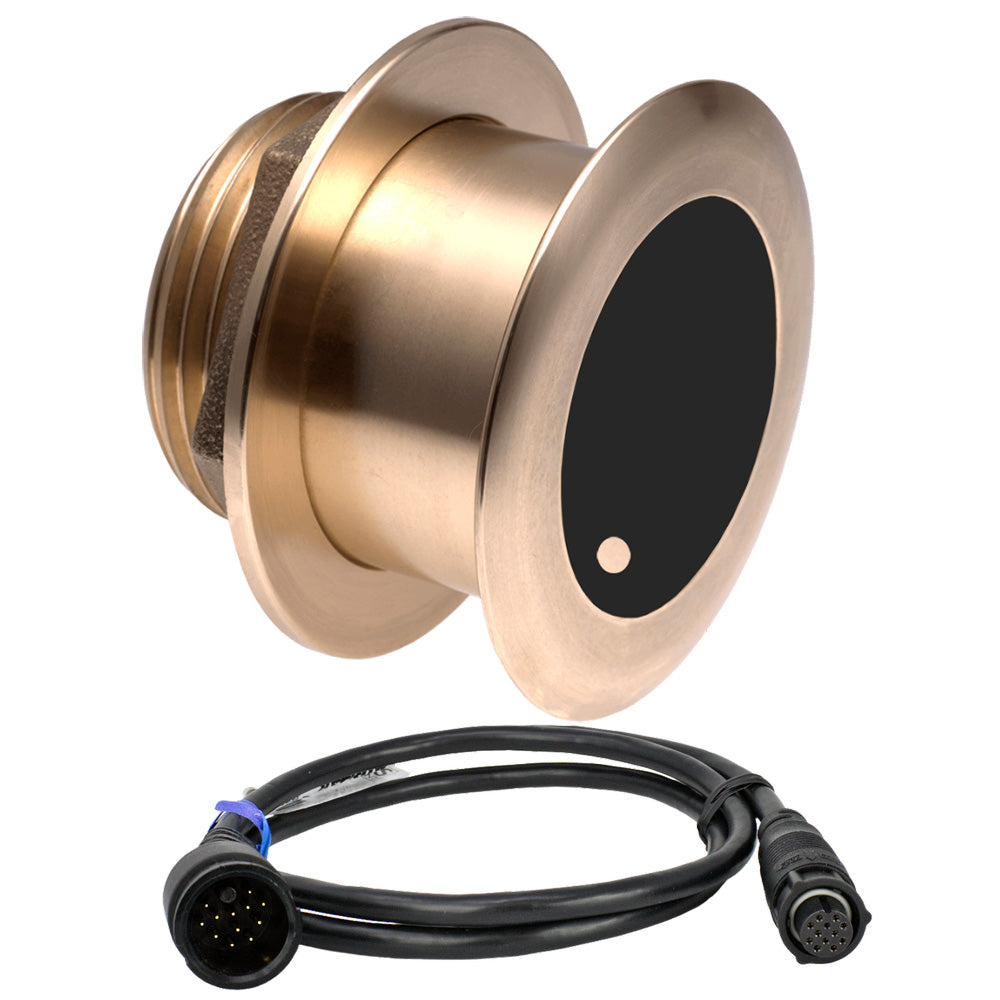

Airmar B175MW Med Ultra Wide 1kW, 20 Chirp Thru-Hull 12-Pin Transducer f/Furuno TZTouch3

The B175MW Med Ultra Wide 1kW Transducer by Airmar Technology elevates underwater performance with its medium frequency range and expansive beamwidth, making it an ideal choice for anglers targeting pelagic species. Designed for optimal coverage in the upper water column, this thru-hull transducer ensures superior echo returns and reliable performance in various marine environments.

Key Features

• Fixed 20° tilt suitable for hull deadrise angles between 16° to 24°
• 12-pin connector compatible with Furuno TZTouch3 12" and 16" displays
• Integrated depth and fast-response water temperature sensors
• Powerful 1 kW output with depth tracking capabilities down to 400 meters (1,300 feet)
• Operates within a medium frequency range of 60-100 kHz
• Generates a wide beamwidth of 57° to 73° port/starboard and 16° fore/aft
• Provides a total bandwidth of 40 kHz from a single transducer
• Superior mid-depth performance and excellent fish-target separation
• Durable bronze housing suitable for stepped, planing, or displacement hulls
• Low-profile, thru-hull installation ensures excellent resolution at speed when properly installed
• Equipped with exclusive Xducer ID® technology for enhanced performance

Specifications

Brand	Airmar Technology
Acoustic Window	Urethane
Cable Length	9 m (30'), 10 m (33')
Common Use	Fishing
Connector	Furuno 12 Pin
Country of Origin	USA
Display Connector	12 Pin
Functions	Depth, Temperature
Hole Size	95 mm (3-3/4")
Hull Material	Fiberglass or wood
Material	Bronze
Max Deadrise Angle	24°
Max Depth	400 m (1300')
Max Vessel LOA	Up to 11 m (36')
Medium Frequency	60-100 kHz
Medium Frequency Beamwidth	57° to 73° (Port/Starboard) x 16° Average (Fore/Aft)
Mounting Style	Tilted Element Thru-Hull
Power Rating	1 kW
Single or Dual Frequency	Single
Tilt Angle	20°
Tilted Element	Yes
Water Temperature Range	-10° to 40°C (14° to 104°F)
Weight	2.7 kg (6 lbs.)
