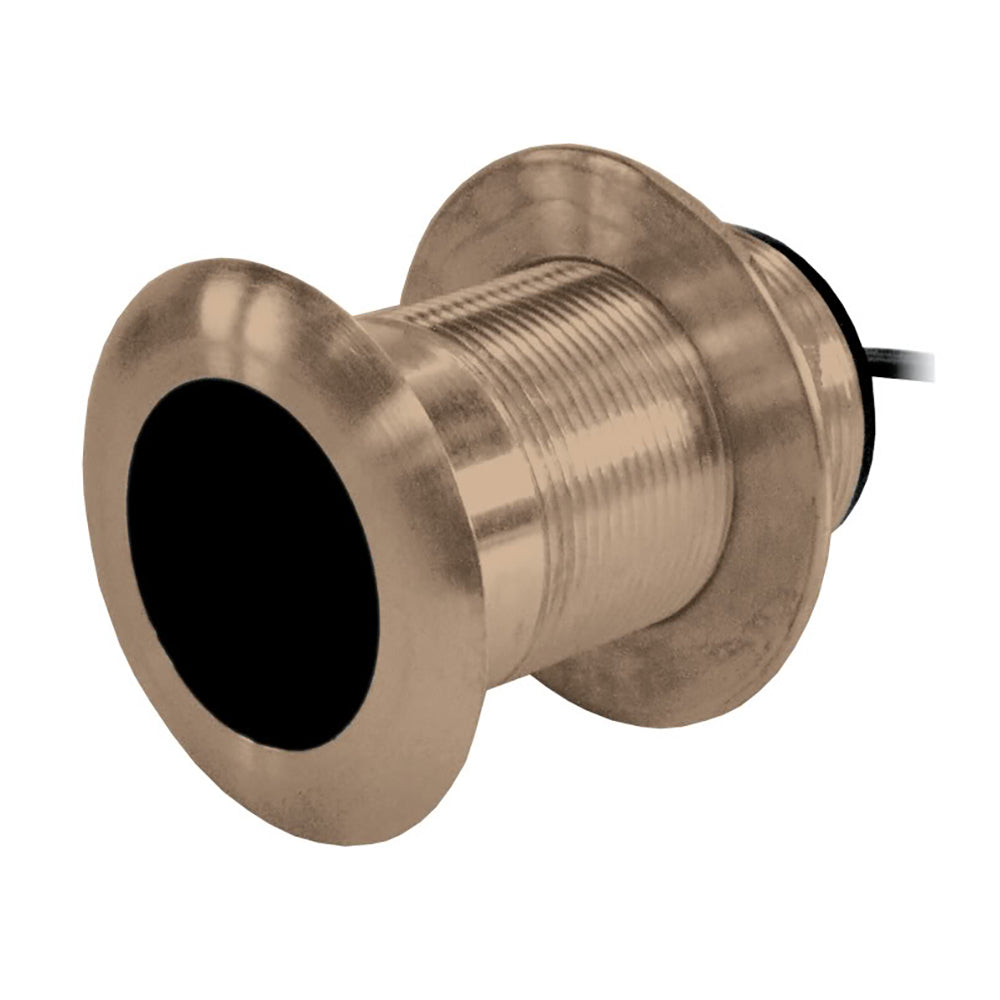

Airmar B117 Bronze 0 Depth Temp w/Ray Connector f/CP370 DSM300

The B117 Bronze 0° Depth & Temp sensor is designed for precision and durability, making it an essential addition to your marine equipment. Compatible with CP370 and DSM300 systems, this sensor delivers reliable depth and temperature readings with minimal drag, ensuring optimal performance for your boating adventures.

Key Features

• Durable Bronze Housing for enhanced longevity
• Measures Depth and Temperature accurately
• Low-profile design with only 5 mm (3/16") extending outside the hull to minimize drag
• Available in Plastic P319 and Stainless Steel SS60 models to suit all hull materials
• Dual-frequency operation at 50/200 kHz
• Usable Shaft Length: 66.5 mm (2.62”)
• Includes Replacement Nut—405 for easy maintenance
• 10 m (33’) high-quality cable for reliable signal transmission
• Compatible with boats 8 m (25’) and up, ideal for center-console and trailered boats
• High RMS Power: 600 W for consistent performance

Technical Specifications

Feature	Specification
Housing Material	Bronze
Frequency	50/200 kHz
Maximum Depth Range	50 kHz: 800-1200 ft 200 kHz: 400-700 ft
Cone Angle	50 kHz: 45°, 200 kHz: 12°
Usable Shaft Length	66.5 mm (2.62”)
Cable Length	10 m (33’)
Compatible Boat Size	8 m (25’) and up
Power	600 W RMS

Compatibility

The B117 Bronze sensor is fully compatible with CP370 and DSM300 systems, ensuring seamless integration with your existing marine electronics. Its versatile design makes it suitable for a wide range of boats, including center-console and trailered vessels.

Please note: This product may not be returned to the original point of purchase. If you encounter any issues or have concerns, please contact the manufacturer directly for assistance.
