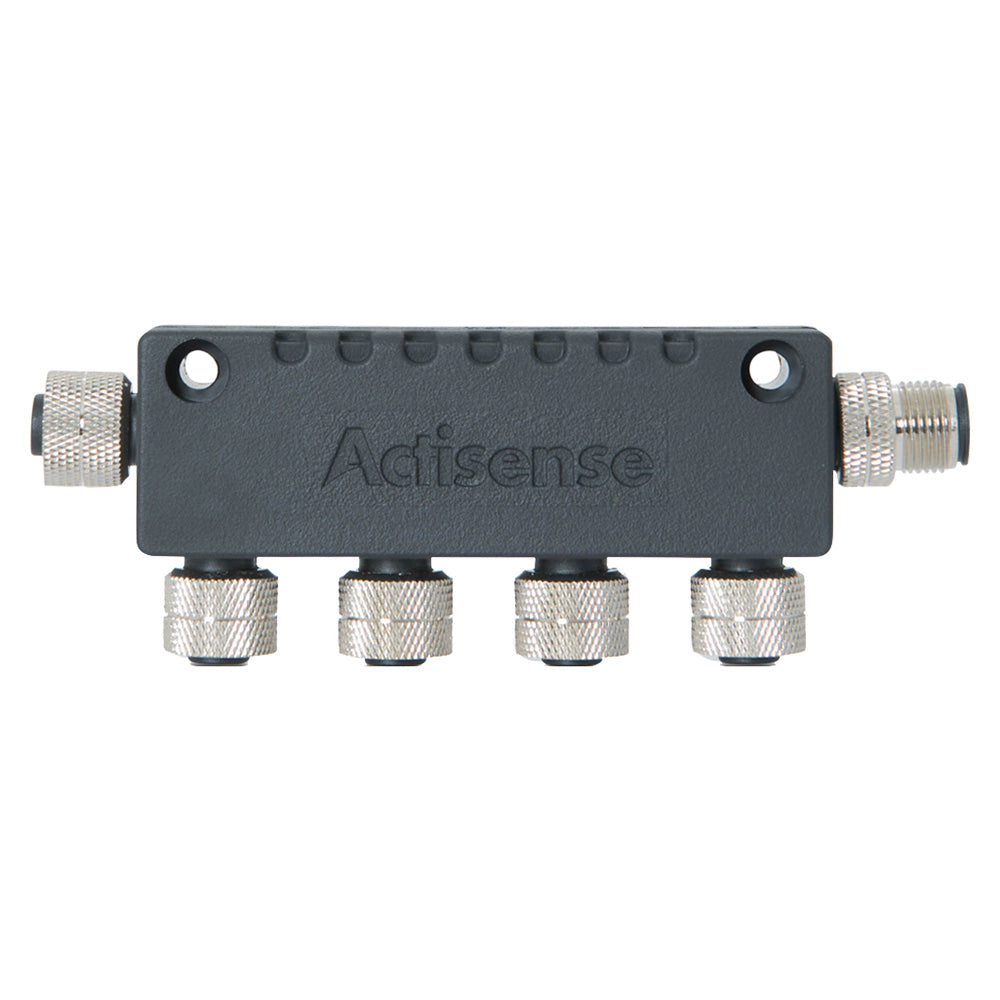

Actisense N2K Micro 4 Way T-Piece

The Actisense N2K Micro 4 Way T-Piece is an essential component for marine enthusiasts seeking to expand their NMEA 2000 network efficiently. Designed specifically for boating applications, this compact T-Piece allows multiple connections from your vessel's backbone without the clutter and high costs associated with using multiple individual T-Pieces. Whether you're upgrading your boat's electronics or installing a new system, the N2K Micro 4 Way T-Piece ensures a reliable and streamlined setup.

Why Choose the Actisense N2K Micro 4 Way T-Piece?

Optimized for the demanding marine environment, the Actisense N2K Micro 4 Way T-Piece combines durability, ease of installation, and cost-effectiveness. Its robust construction ensures long-lasting performance, while the intelligent design saves valuable space on your vessel. Perfect for yachts, sailboats, and motorboats, this T-Piece enhances your boat’s electronic network, making it easier to manage multiple devices seamlessly.

Features

• NMEA 2000 Approved: Ensures compatibility and reliability within your marine electronic network.
• RoHS Compliant: Meets environmental standards for hazardous substances, making it safe for marine use.
• Space-Saving Design: Replaces multiple T-Pieces, reducing clutter and conserving valuable space on your vessel.
• Cost-Effective: Provides multiple connection ports at a fraction of the cost of individual T-Pieces.
• Easy Installation: Simplifies the setup process, allowing for quick integration into your existing NMEA 2000 network.

Specifications

Parameter	Details
Rated Current	4A
Rated Voltage	60V DC
Male Contact	Brass, gold plated
Female Contact	Phosphor bronze, gold plated
Contact Carrier	PA66 (30% Glass filled), black
Contact Polarization	Standard M12 -"A" - polarization
Mating Thread	M12
Screw Cap	Brass, nickel plated
O-Ring Seal	Rubber, Black
Housing	TPU, flame retardant to UL94V-0, Halogen Free
Internal Housing Shield	Copper Foil
Weight	105g
Protection	IP67 (when mated)
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C

Installation and Setup

Installing the Actisense N2K Micro 4 Way T-Piece is straightforward, making it an ideal choice for both professional installers and DIY marine enthusiasts. The standard M12-"A" polarization ensures correct and secure connections, while the durable materials protect against harsh marine conditions. Follow the included quick guide to integrate the T-Piece into your NMEA 2000 backbone effortlessly.

Additional Resources

Download the Quick Guide (PDF)
