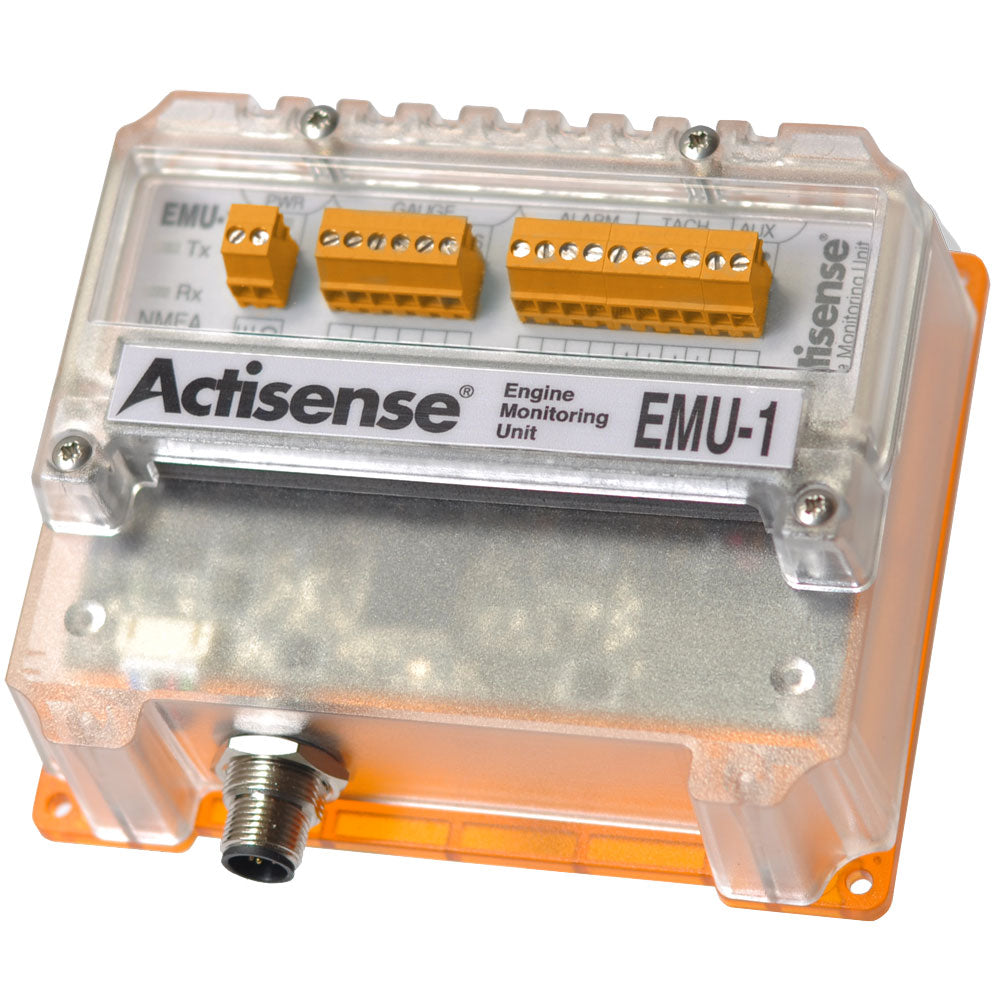

Actisense Engine Management Unit Analog - NMEA2000

The Actisense EMU-1 Engine Management Unit Analog seamlessly integrates your vessel's engine data into the NMEA 2000® network, enabling comprehensive monitoring and management through compatible display devices. Whether you're upgrading an existing system or installing new marine electronics, the EMU-1 offers a reliable and flexible solution for a wide range of engine makes and models.

Key Features

• Supports up to 6 gauge inputs for detailed engine monitoring
• Includes 4 alarm inputs to notify you of critical engine conditions
• Equipped with 2 tachometer inputs to accurately log engine RPM and total operating time
• Offers 2 auxiliary inputs for additional customization and flexibility
• Utilizes simple single-wire gauge connections with a common ground reference for easy installation
• Eliminates the need for manual measurements during configuration
• Firmware updates are conveniently performed over the NMEA 2000 network
• Highly customizable for various installations using the NGT-1 interface and PC software
• Features waterproof electronics and splash-proof connections to withstand marine environments
• Pluggable connectors enable quick and hassle-free installation
• Optional DIN rail mounting kit available for secure placement in vessel panels

Advanced Engine Monitoring

The EMU-1 converts analog engine parameters such as temperature, pressure, and RPM into NMEA 2000 engine PGNs, facilitating real-time data sharing across your vessel's network. This integration allows for centralized monitoring, enhancing your ability to manage engine performance and respond promptly to any issues.

Flexible Configuration

With the PC-based configuration tool, you can easily adjust the EMU-1 settings to match your specific engine requirements. This flexibility supports a wide array of engine makes and models, making the EMU-1 a versatile choice for various marine applications. Currently, the EMU-1 supports one unit per engine, with future firmware updates planned to allow multiple engines on a single device.

Easy Installation and Maintenance

The two-part screw terminal connection system ensures a secure and straightforward connection to your engine's wiring harness. The customized sealed case protects the electronics while providing quick access to electrical connections, simplifying both installation and maintenance processes.

System Integration

For optimal performance, it's recommended to pair each EMU-1 with an Actisense NGT-1 NMEA 2000 PC Interface. The NGT-1 facilitates firmware updates, connects the configuration tool, and allows you to display and diagnose data on a PC using NMEA Reader. Explore the NGT-1 product page for more details.

Technical Specifications

Data Interface	NMEA 2000
Dimensions	3" H x 6" W x 9" L
Weight	1 lb
UPC	5060998710331

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
