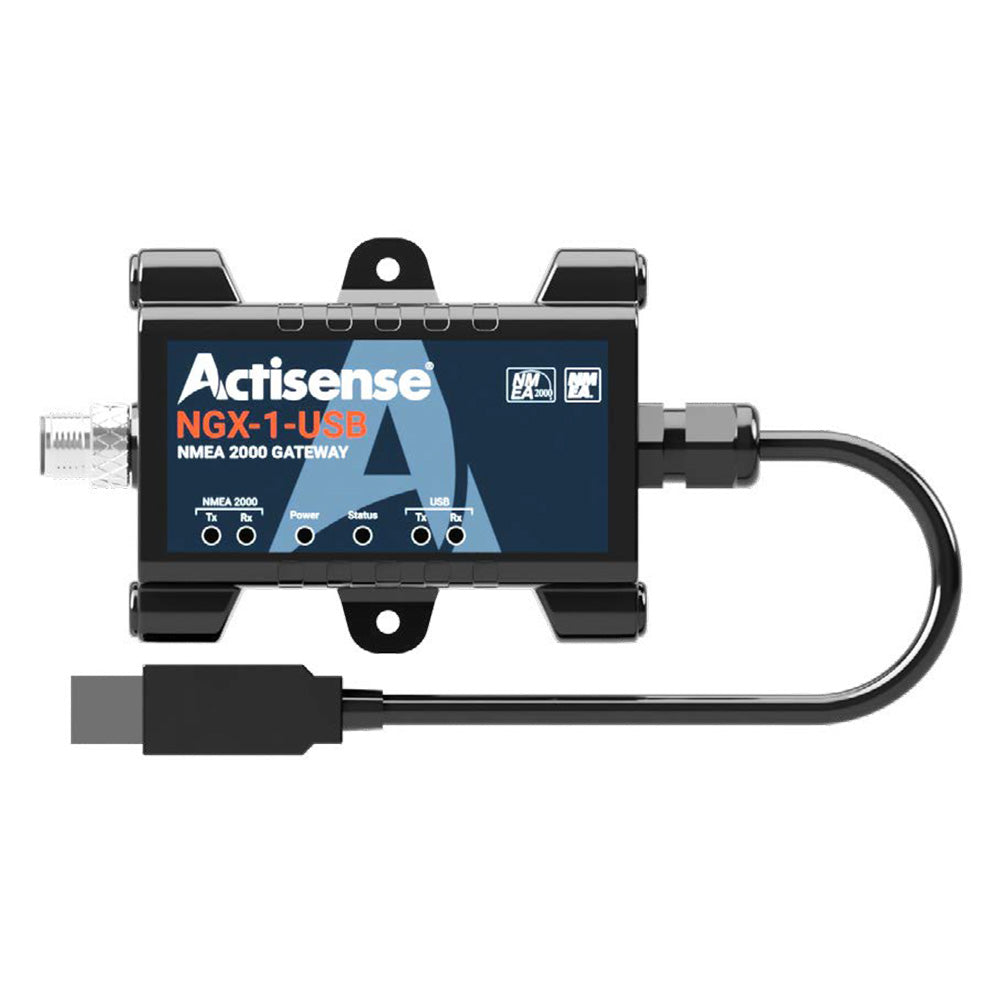

Actisense 0183 to N2K Gateway w/PC Interface, USB

The Actisense NGX-1 is a versatile gateway designed for marine electronics enthusiasts, seamlessly bridging the gap between NMEA 0183 and NMEA 2000 systems. Whether you're upgrading your vessel's navigation equipment or integrating new devices with existing setups, the NGX-1 ensures reliable and efficient data communication across different marine standards.

Product Overview

The NGX-1 converts NMEA 0183 data to NMEA 2000 and vice versa, enabling communication between devices that adhere to these protocols. This flexibility allows boat owners to incrementally upgrade their electronics, balancing the integration of advanced NMEA 2000 devices with existing NMEA 0183 equipment. By spreading out the transition costs, you can enhance your vessel’s capabilities without a significant initial investment.

Variants and Connectivity

The NGX-1 is available in two variants to cater to different connectivity needs:

ISO Variant

The ISO variant is tailored for seamless integration with NMEA 0183 devices. It features dedicated data wires for both transmit and receive, allowing bi-directional data sharing when necessary. Key technologies include:

• OPTOIsolation: Protects input connections from ground loop issues.
• ISO-Drive™ Technology: Ensures safe and reliable output by isolating the device from hazardous ground loops.

USB Variant

The USB variant offers straightforward connectivity to a PC, making it ideal for users who need to interface NMEA 0183 data with software applications. This variant simplifies the setup process, allowing quick integration with your computer-based marine systems.

Power and Installation

The NGX-1 is designed for low power consumption and is powered directly from the NMEA 2000 network. This eliminates the need for an independent power supply, simplifying installation and reducing cable clutter on your vessel.

Advanced Features

Feature	Description
Diagnostic Tool	Essential for monitoring NMEA 2000 network health and performance.
Fully Isolated USB	Prevents dangerous ground loops, ensuring safe connectivity.
High Data Transfer Rate	Supports up to 230,400 baud for fast and efficient data communication.
Integrated USB Cable	Includes a 1.8m USB cable for immediate connectivity out of the box.
Diagnostic LEDs	Provides visual indicators for both input and output status.

Enhanced Compatibility

Integrate the NGX-1 seamlessly with Raymarine® products using the STNG-A06045 adaptor cable. This cable allows Raymarine SeaTalkNG devices to communicate with standard NMEA 2000® networks and vice versa. Please note that this adaptor is only available when purchased alongside an Actisense NMEA 2000® Gateway product.

Security and Control

As an NMEA 2000 to PC Gateway, the NGX-1 acts as a rule-enforcing firewall between your PC and the marine network. This gives you full control over the data flow, allowing you to specify which information is transmitted or blocked. The device can transfer every currently available NMEA 2000 PGN to a PC application, enabling comprehensive data management and monitoring.

Support and Documentation

For more detailed information, refer to the Brochure (PDF).
