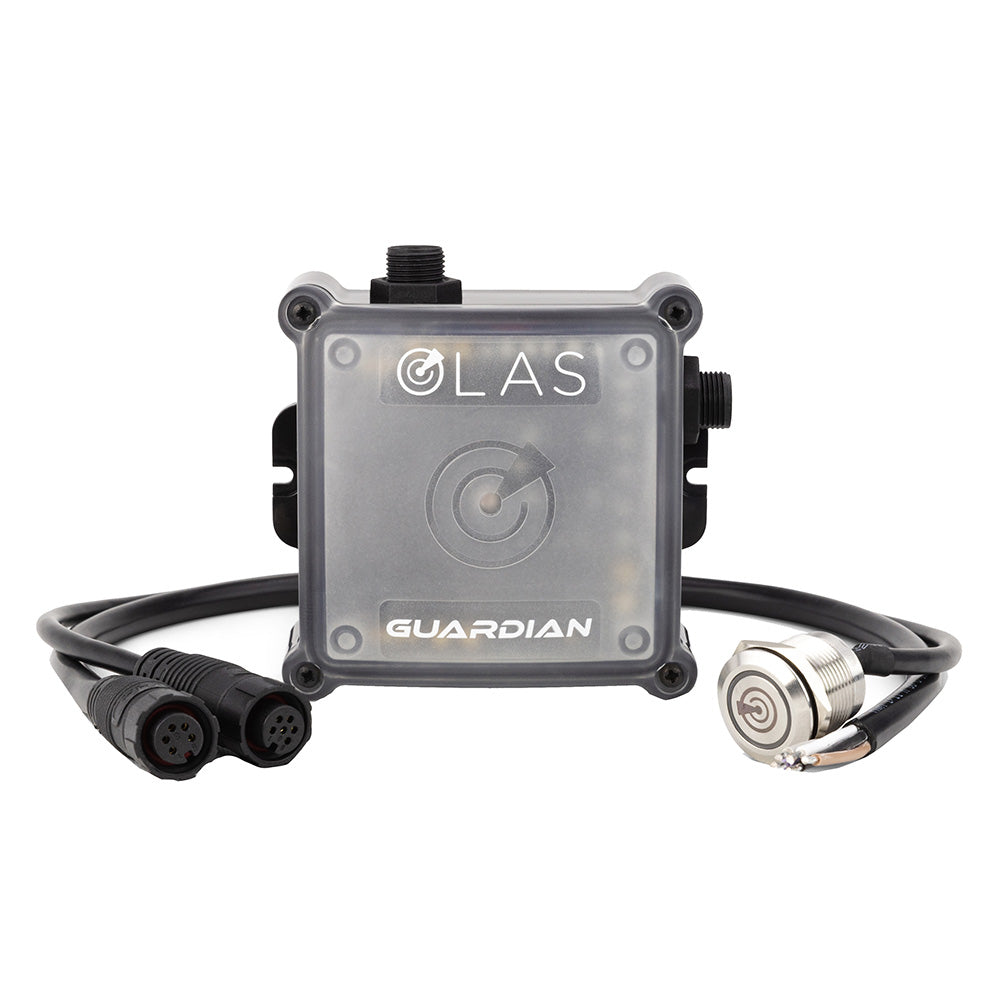

ACR OLAS Exposure Series Guardian

The OLAS Exposure Series Guardian is an advanced wireless engine kill switch designed for marine safety. In just two seconds, it can halt your vessel’s engine if someone goes overboard, while simultaneously functioning as an instant Man Overboard (MOB) alarm system. With the capability to connect up to 25 OLAS transmitters and cover vessels up to 50 feet, the Guardian offers unparalleled safety and convenience for powerboat and RIB owners.

What's Included

• Guardian unit
• OLAS Tag with Battery
• Power Connection Wires
• Kill Cord Connection Wires
• Stainless Steel Switch
• User Guide
• 5 x Marine Connectors

Enhanced Safety for Your Vessel

The OLAS Guardian ensures that boat drivers and crews can instantly stop their engines if separated, mitigating the risk of accidents caused by unmanned or uncontrolled vessels. Unlike traditional kill cords, the Guardian allows crew members to move freely around the boat without the hassle of attaching and detaching physical cords continuously.

Customizable Tag Modes

• Engine Stop: Functions as a kill cord, stopping the vessel when the tag is out of range without triggering MOB alerts.
• MOB Alert: Activates an alert on the vessel without cutting the engine.
• Engine Stop + MOB Alert: Triggers both crew alerts and cuts off the engine simultaneously.

How the Guardian Works

• The Guardian can track up to 25 OLAS transmitting devices (OLAS T2, OLAS Tag, OLAS Float-On) within range, allowing crew and skipper to move freely with the assurance that the engine will be cut off and/or an alarm will be triggered if someone goes overboard.
• Installation is straightforward, connecting the Guardian to your vessel's 12/24V power supply and existing kill switch using the provided connectors.
• A 21mm hole is needed near the existing kill switch to install the 20mm stainless steel LED control switch.

Professional installation is recommended to ensure proper setup, as ACR Electronics does not accept liability for incorrect installation.

Ideal for Boating Enthusiasts

The OLAS Guardian is perfect for drivers of power and motor boats, as well as skippers and boat owners dedicated to onboard safety. It wirelessly connects up to 25 crew members via wearable OLAS transmitters (T2, Tag, or Float-On Light), creating a secure virtual kill cord system.

Core Advantages

• Compatibility with Existing Kill Switch: Use the Guardian alongside or in place of your existing kill cord switch for full wireless cut-off capability.
• Automatic Restart: The kill switch deactivates after 5 seconds, allowing the engine to be restarted quickly.
• Inbuilt Alarm: An 85dB alarm sounds to notify when an OLAS transmitter goes out of range.
• Emergency Light: When externally mounted, a high-power red light provides a clear visual alarm indication.
• Relay Selection: Customize which transmitters trigger the engine cut-off or only activate the MOB alarm via the OLAS App.
• Automatic Connection: The Guardian automatically connects to any activated OLAS transmitters within a 2-meter range when the vessel is powered on.
• Connection Alerts and Override: Receive alerts if no transmitters are active upon boarding, with options to connect transmitters or manually override the Guardian.
• Pause Mode: Temporarily deactivate the system when leaving the boat with the engine running, such as when walking along a pontoon.
• Expandable Connectivity: Connect up to 25 OLAS transmitters, including MOB flotation devices and yacht tenders, to monitor crew and objects.
• Extender Compatibility: Use up to two OLAS extenders to expand coverage to vessels up to 100 feet.

Mobile App Integration

Control and monitor your OLAS Guardian effortlessly with the free OLAS App, available on the App Store for iOS and Google Play for Android. The app enhances the Guardian’s functionality and assists in rapid rescue operations with features such as:

• Tracking all connected OLAS transmitters
• Customizing transmitter names for easy identification
• Monitoring transmitter battery status
• Adding new transmitters to the Guardian system
• Pausing the system when transmitters are temporarily out of range
• Adjusting the response time before the Guardian activates, from 2 to 15 seconds
• Switching between engine cut-off and external alarm modes
• Activating Solo Mode for automatic text alerts with GPS coordinates
• Recording and displaying the GPS location of MOB incidents
• Using the app’s guidance features to return to the MOB location

Easy Setup & Mounting

12/24V Wired Connection

Connect the Guardian to your vessel’s power supply to ensure continuous operation whenever the boat is powered. The power wires can easily splice into an existing power source from the boat’s battery.

Through Panel Mounting

The compact stainless steel switch requires minimal modification to your existing center console, fitting through a 21mm hole for seamless integration.

Color-Coded Control Switch

The intuitive color-coded control switch simplifies system operation and setup without relying solely on the OLAS App. During setup, a red indicator light signals the automatic setup stages, while a green light confirms the system is active. In an alarm situation, the light reverts to red.

System Feedback

The Guardian provides real-time feedback on the number of connected OLAS transmitters during setup. Transmitters can be added via the mobile app or through a straightforward inbuilt switching process.

Product Features

• Free OLAS Mobile App Integration
• Ultra-Bright Red LED Visual Alarm
• 85 dB Audible Alarm
• Connect up to 25 OLAS Transmitters
• Waterproof Rating: IP67
• Latest Bluetooth® Technology
• Extendable Coverage to 100 ft with OLAS Extenders (x2)
• 12/24V Wired Operation
• Color-Coded Control Switch
• Automatic Engine Restart
• Customizable Relay Selection
• Automatic Connection to Transmitters
• Connection Alerts and Manual Override
• Pause Mode for Temporary Deactivation
• Compatible with Existing Kill Switch Systems

Technical Specifications

Specification	Details
Size	3.6” (H) x 3.5” (L) x 1.5” (W)
Weight	3.97 Ounces (112.5 g)
Color	Black and Clear
Operation	Press the button once to activate tracking for all tags within 2 meters
Max Connected Transmitters	Up to 25 OLAS Transmitters (OLAS Tags and/or OLAS Float-On)
Power / Current	10-32V / 13-17mA
Visual Alarm	Red LED / 55 Lumens
Audible Alarm	85 Decibels
Automatic Restart	After 5 Seconds
Bluetooth	4.2 + 5.0
Waterproof	Yes (IP67)
Housing Material	ABS
Fuse Recommendation	1-3 Amp (not supplied)
Range	Up to 50 feet, extendable to 100 feet with OLAS Extenders
Applications	Recreational and Commercial Boating
Accessories Included	OLAS Tag, Power Connection Cable, Kill Switch Cord Connector, Stainless Steel Control Switch
Warranty	1 Year
Certifications	FCC, RED, CE, RoHS 2.0
