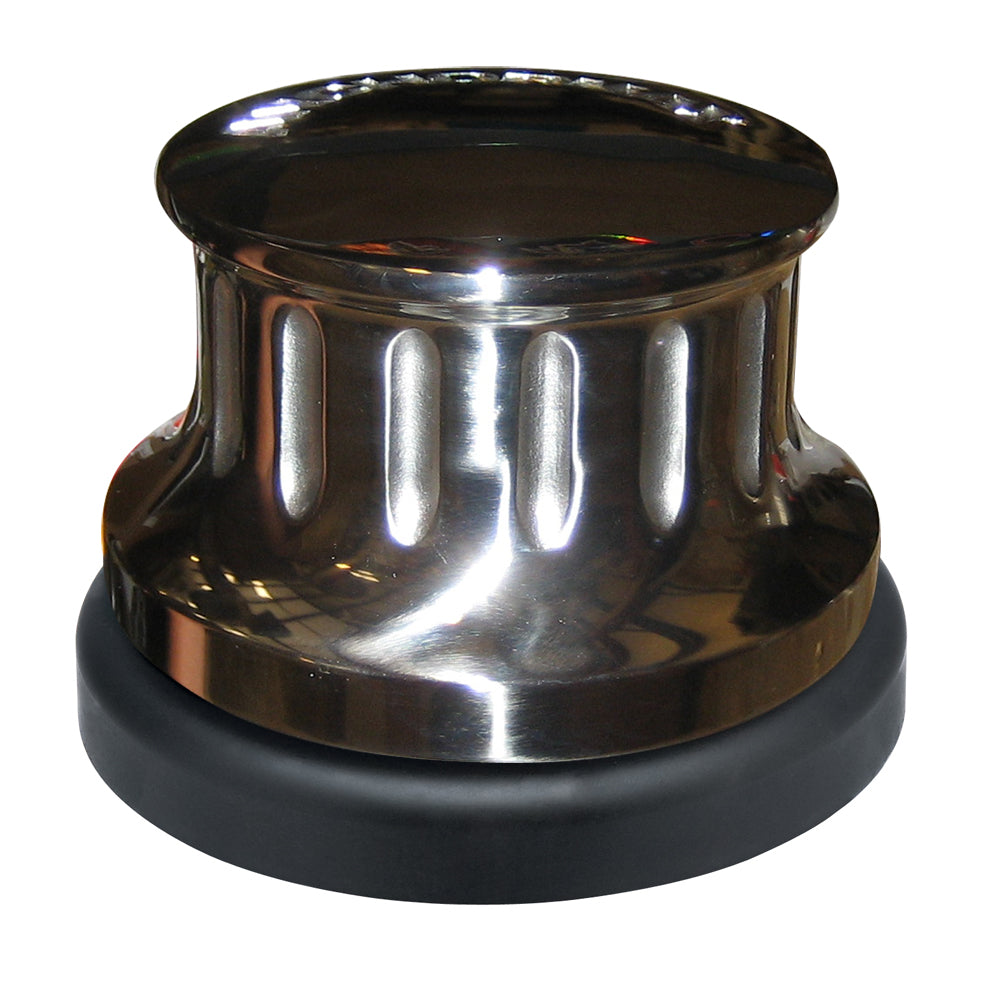

Maxwell ANCHORMAX Windlass

Introducing the ANCHORMAX™ Windlass, a high-performance and reliable solution designed for boats ranging from 5m (16ft) to 10m (32ft). Engineered with superior materials and advanced technology, this windlass ensures effortless anchoring and enhanced safety for your marine adventures.

Features

• Exceptional power-to-weight ratio for efficient performance
• Compact, fully sealed gearbox driven by a vertically mounted permanent magnet motor
• Minimized intrusion below decks, making it ideal for a wide range of boats
• Easy installation without the need to dismantle the winch
• Constructed with marine-grade alloy gear housings and a stainless steel drum for durability
• Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template, and comprehensive fitting instructions
• Not recommended for hauling halyards
• Not suitable for hauling chain

Technical Specifications

SPECIFICATIONS
Maximum Line Pull	386kg (850lb)
Speed @ Nominal Working Load	24m/min (76ft per min) at 80 amps with a 100kg (220lb) load
Voltage	12V
Power	600W
Weight	8kg (17.6lb)
Maximum Boat Length	10m (33ft)
Maximum Boat Weight	4 Tons

Standard Equipment

• Footswitch

Important Information

Note: Each windlass is supplied as a single direction (clockwise) fully tested unit. It includes fitting instructions, deck switch, templates, and all necessary fastenings.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Downloads

• Quick Guide (PDF)
• Brochure (PDF)
