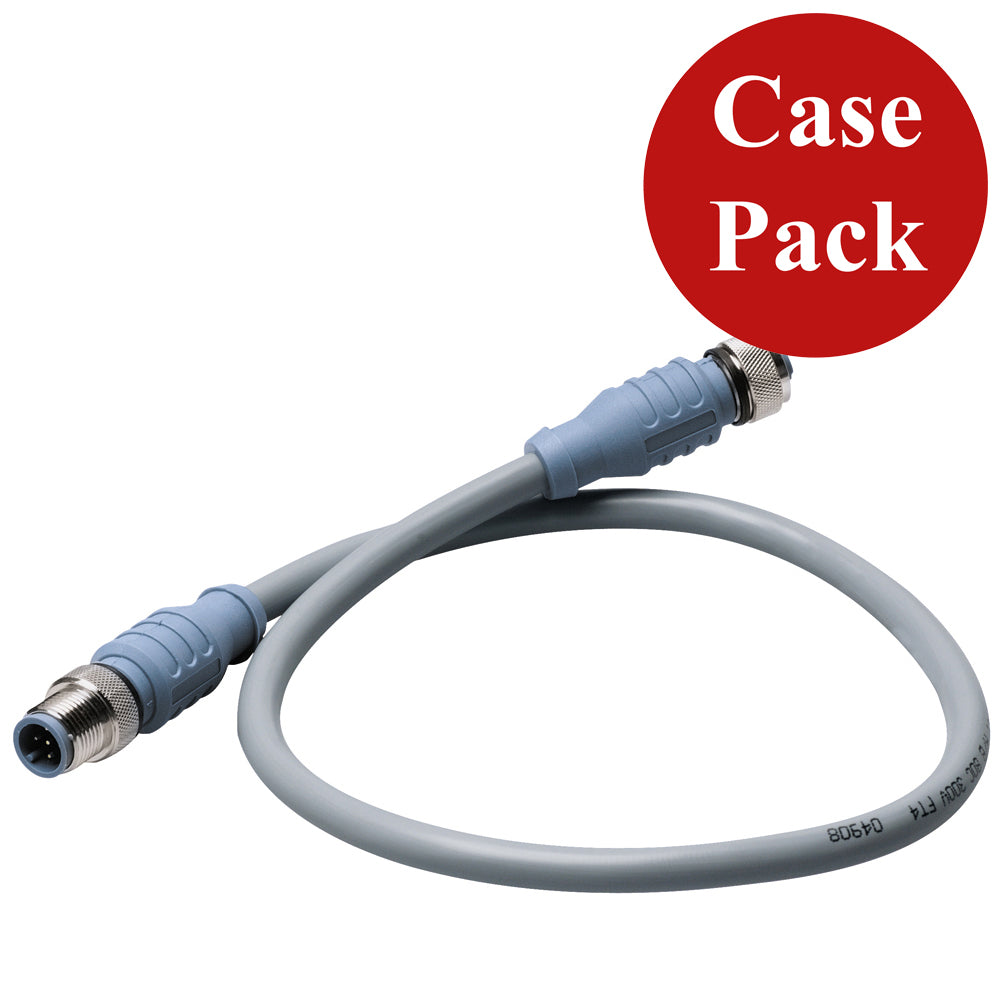

Maretron Micro Double-Ended Cordset - 3M - *Case of 6*

The 3M Micro Double-Ended Cordset is a reliable and durable solution tailored for marine and boating applications. Engineered to endure harsh environmental conditions, this cordset ensures consistent electrical and mechanical performance, making it an essential component for various onboard systems.

Mechanical Specifications

Feature	Details
Contact Carrier Material/Color	Thermoplastic PUR / Blue-Gray
Molded Body Material/Color	Thermoplastic PUR / Blue-Gray
Contact Material/Plating	Brass / Gold
Coupling Nut Material/Plating	Brass / Nickel
Connector Outside Diameter	0.59"

Electrical Specifications

Feature	Details
Current Rating	4.0 Amps
Voltage Rating	250 V
Outer Jacket Material/Color	PVC / Gray
Conductor Insulation Material	HDPE (data pair), SRPVC (power pair)
Number of Conductors	4 x 22 AWG, 22 AWG Drain Wire
Shielding (3 Levels)	FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental Specifications

Feature	Details
Protection Class	IEC IP68, NEMA 1, 3, 4, 6P
Temperature Rating	-40°C to 80°C (-40°F to 176°F)
Cable UL Approvals	PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
Cable CSA Approvals	CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
NMEA Approval	NMEA 2000 Approved

Product Specifications

Feature	Details
Cable Length	10' (Feet)
Box Dimensions	1" H x 6" W x 8" L
Weight	3.3 lbs
