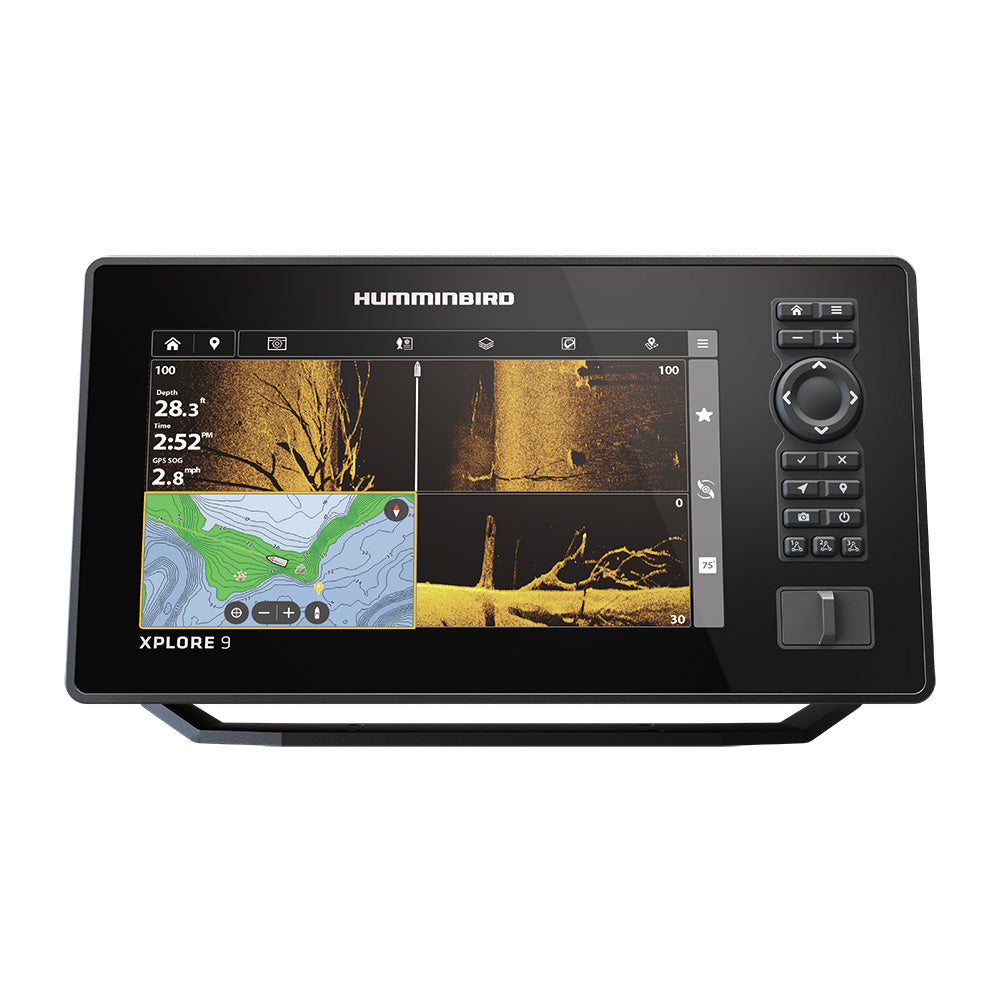

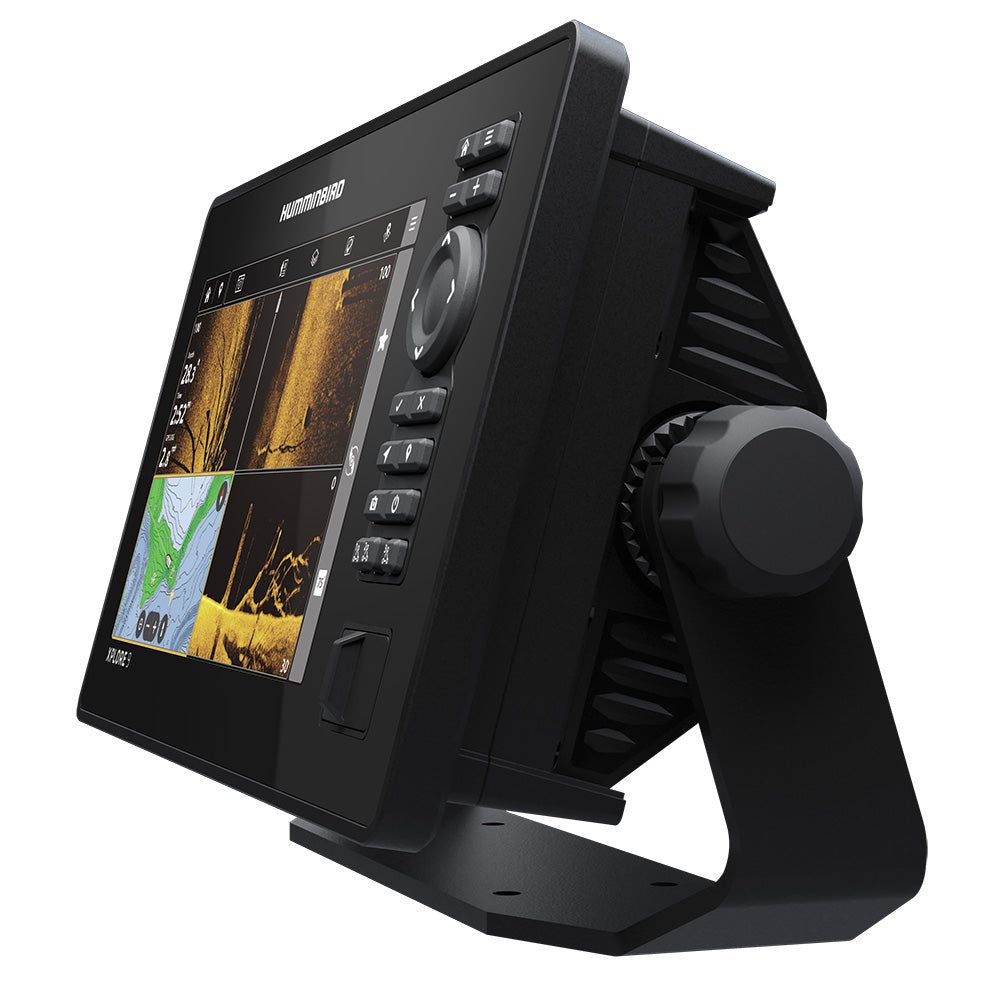

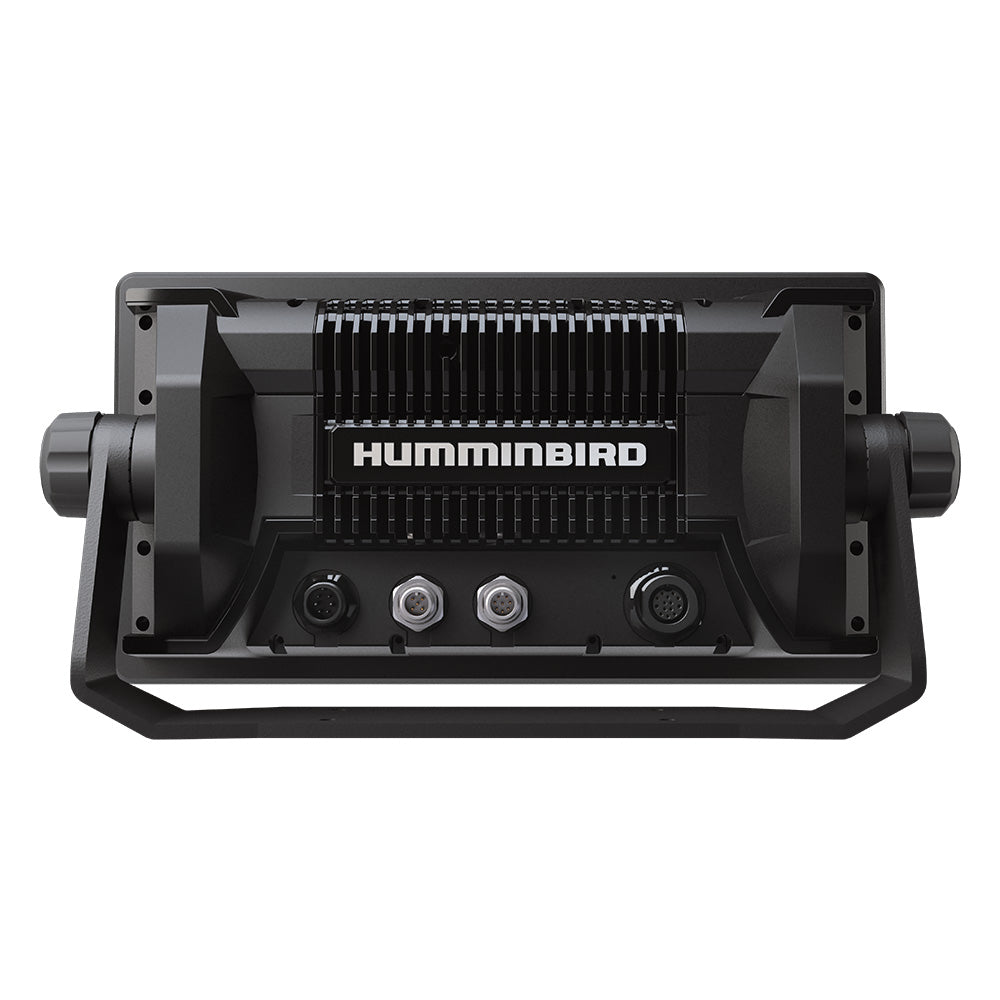

Humminbird XPLORE 9 CMSI+

The XPLORE 9 CMSI+ is a premium fish finder designed for the avid angler who demands superior clarity and advanced features on the water. Featuring a 9” ultra-clear display, this model integrates cutting-edge sonar technology, comprehensive mapping capabilities, and seamless connectivity to enhance your fishing experience.

Unmatched Display and User Interface

The XPLORE 9 CMSI+ boasts a Full-HD 1280H x 720V display that delivers stunning detail of underwater structures and fish. Navigate effortlessly using the intuitive Cross Touch® interface or the traditional keypad, providing flexibility to suit your preference.

Advanced Sonar Technologies

Dual Spectrum CHIRP Sonar

• Utilizes proprietary Low-Q CHIRP transducer for enhanced sonar performance.
• Wide Mode for maximum coverage and Narrow Mode for detailed focus.
• Provides clear fish arches and detailed views of underwater structures.

MEGA Side Imaging+

• Crystal-clear side imaging up to 200 feet on each side of your boat.
• Offers 20% more detail and 60% greater range compared to standard MEGA Side Imaging.
• Enhances the ability to locate fish and underwater structures.

MEGA Down Imaging+

• Delivers unparalleled clarity down to 200 feet beneath your vessel.
• 20% more detail and 60% increased depth capability over standard MEGA Down Imaging.
• Reveals intricate details of the underwater environment.

Comprehensive Mapping and GPS

Internal GPS with Humminbird Basemap

• Integrated GPS enables precise navigation and mapping.
• Preloaded Humminbird Basemap covers over 10,000 lakes and coastal areas in the U.S. and Canada.
• Identify buoys, day markers, hazards, marinas, contours, and depth markers with ease.

Premium Chart Compatibility

• Supports Humminbird LakeMaster® and CoastMaster™ mapping cards.
• Compatible with Navionics® Gold/HotMaps and Platinum+ charts.
• Enhances chartplotting with detailed cartographic data.

AutoChart Live

• Create real-time maps of your fishing spots with AutoChart Live.
• Maps depth contours, bottom hardness, and vegetation as you navigate.
• Includes 8 hours of built-in recording time and supports AutoChart Zero Line SD cards for extended mapping.

Seamless Connectivity and Networking

One-Boat Network Compatibility

• Integrates smoothly with Minn Kota and Cannon products.
• Unlocks additional features and enhances overall boat control.
• Optimize your time on the water with interconnected devices.

Ethernet and Bluetooth Networking

• High-speed Ethernet allows for a professional-grade fishing system setup.
• Connect multiple fish finders and add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth enables wireless control of compatible anchors and downriggers, along with software updates and smartphone notifications.

NMEA 2000® Networking

• Built-in NMEA 2000® allows connection to accessory networks.
• Access comprehensive information on boat performance, weather, and water conditions.
• Enhances data integration for improved decision-making on the water.

Specifications

Feature	Details
Cartography Brand	Humminbird
Included Transducer	XM-14-HW-CMSI-T
Screen Size	9"
Touchscreen	Yes
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Mount-Standard Size	11.690 in W x 6.569 in H x 3.884 in D
Mount-Optional Size	6.259 in W x 11.69 in H x 3.3 in D
GPS Receiver	Internal
Waypoints	10,000
Routes	50
Tracks/Points	50/20,000
Memory Card Slot	Dual Micro SD
Warranty	Two-Year Limited
Box Dimensions	11"H x 11"W x 16"L
Weight	12.4 lbs
UPC	082324058653

What's Included

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatibility

The XPLORE 9 CMSI+ is compatible with a wide range of products to enhance your marine setup:

• Minn Kota US2 Sonar
• Minn Kota Built-In MEGA DI
• Minn Kota Talon/Raptor
• Minn Kota i-Pilot Link
• Minn Kota Built-In MEGA SI
• MEGA Live
• NMEA 2000®
• MEGA 360
• Radar
• AutoPilot
• One-Boat Network™

Warranty

The XPLORE 9 CMSI+ comes with a Two-Year Limited Warranty, ensuring peace of mind and reliable performance on every fishing trip.

Download the Brochure (PDF)
